Getting Started

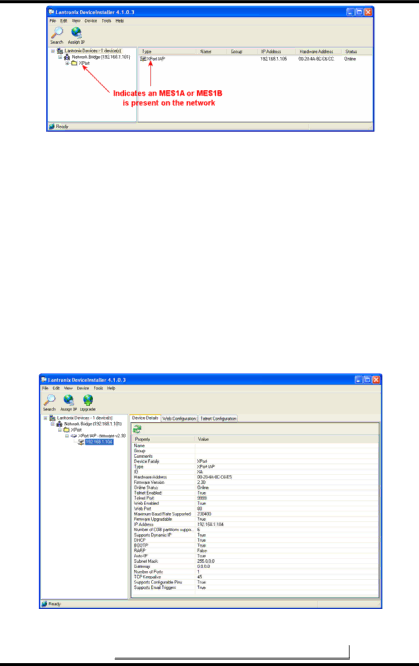

Figure 10. The Device Installer Main Window

Getting Device Details

The Device Installer provides a variety of information about the MES1A/B under the Device Details tab.

To access the Device Details tab:

1.Expand the Device Tree by clicking the + symbol next to XPort. Keep expanding until the IP Address of the MES1A/B appears.

2.Click the IP Address on the Device Tree. The Device Details tab appears where the Device List was.

Figure 11. Device Details Tab

Note: The Web Configuration tab is not used with the MES1A/B.
