Panasonic TY-TP50P6-S, TY-TP42P6-S Uninstallation of the Touch Panel Driver, USB driver software

Page 22

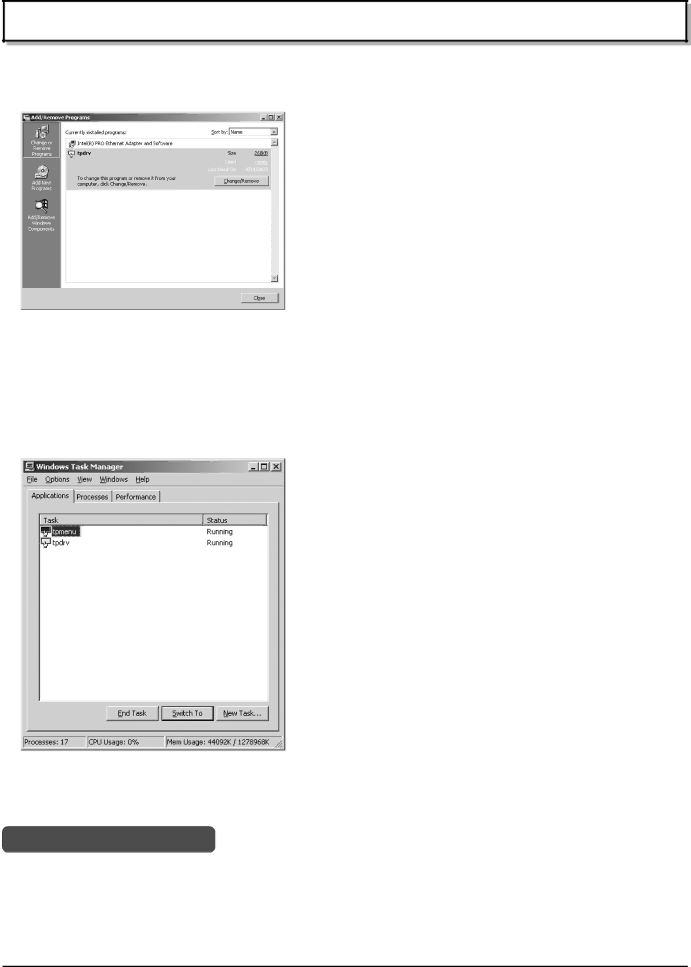

Uninstallation of the Touch Panel Driver

Delete “tpdrv” from the “Add/Remove Programs” of the “Control Panel”.

In case of Windows 2000

(1) Click on [Start] [Settings] [Control Panel]

(2) Double-click on [Add or delete applications].

(3) Click on the [Uninstall] tab.

(4) Select "tpdrv" and click on the [Change and delete] button.

(5) The file delete confirmation screen will be displayed. Click the [Yes] button.

Uninstall will begin.

Note:

You cannot delete the program using Uninstall if the driver is still running. You must stop the driver program first. This may be achieved using one of the following two methods.

Delete the “tpdrv” short cut from the startup folder, and restart your PC. Then proceed to uninstall the Setup Program.

Simultaneously hold down the “Ctrl” + “Alt” + “Delete” keys. In the confirmation display that appears, select both “tpdrv” and “tpmenu” and stop them by clicking on “End Task”. Then proceed to uninstall the Setup Program.

USB driver software

Load the included CD-ROM into the CD-ROM drive, run the program "Un-Installer.exe" on the CD-ROM, and follow the instructions on the screen to perform uninstall.

22
