Other Information

Installing the Wall Mount

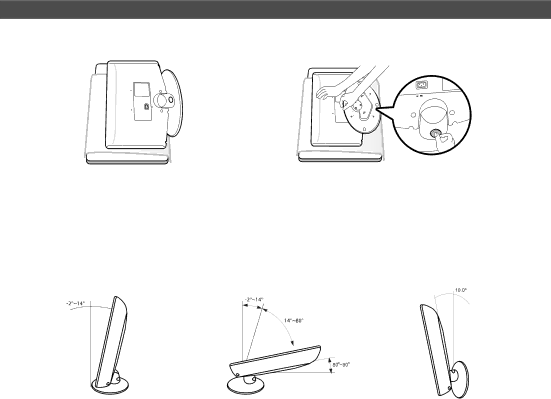

Assembling the Blanking Bracket

12

1.Place the front of the TV onto a soft cloth or cushion on a table as in Figure 1.

–– Align the TV bottom along the table edge.

2.Press on the center of the TV back. Adjust the stand as in Figure 2 while pressing the button on the back of the stand.

3.Place the TV on the table so that the TV sits safely on the table.

How to Adjust the Angle of the TV (LN19C450)

1 Angle adjustment when using

2 Angle adjustment when

the TV on its stand.

converting from Stand to Wall



mount (1→3, 3→1)

When you adjust the stand, press the button on the back of the stand.

3Angle adjustment when LCD TV is wall-mounted

1.Figure 1 shows the adjustment angle (-2°~14°) when you use the LCD on its stand. Excessive tilting can turn the LCD TV over which may cause damage.

2.Figure 2 shows the adjustment angle (14°~80°) when you convert the LCD from stand-based use to wall-mount.

3.Figure 3 shows the adjustment angle (0°~10°) when you mount the LCD TV to a wall. You will hear a “Click” sound when changing the angle from 1 to 2 or 3 to 2.

28 English
