White balance: Adjust the value for best color temperature.

■Auto

The Network Camera automatically adjusts the color temperature of light in response to different light sources. The white balance setting defaults to Auto and works well in most situations.

■Fixed indoor

■Fixed ﬂuorescent

■Fixed outdoor

Maximum Exposure Time: 1/120 S, 1/60 S, 1/30 S, 1/15 S, and Auto.

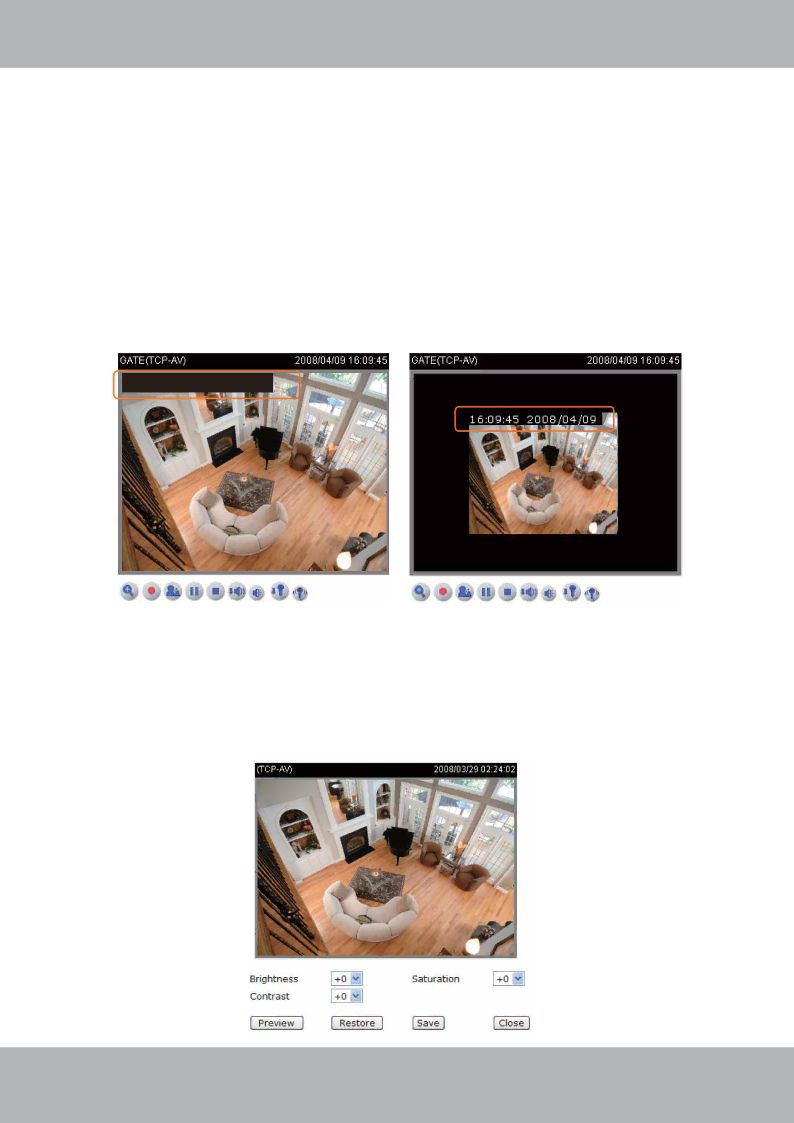

Overlay title and time stamp on video: Select this option to place the video title and time on video streams.

Note that when the frame size is set to 176 x 144 as the right picture below, only time will be stamped on video streams.

GATE 16:09:45 2008/04/09

Image Settings

Click Image settings to open the Image Settings page. In this page, you can tune brighness, contrast, and saturation for video compensation. Each ﬁeld has eleven levels ranged from -7 to +7. The value 0 indicates default auto tuning. The user may press "Preview" to ﬁne-tune the image.

When the image is O.K ; press Save to set the image settings.

Click Restore to recall the original settings without incorporating the changes.

User's Manual - 45
