Toshiba AW-8570SM Installing the drainage hose, Moving the hook, Drainage hose extension

Page 15

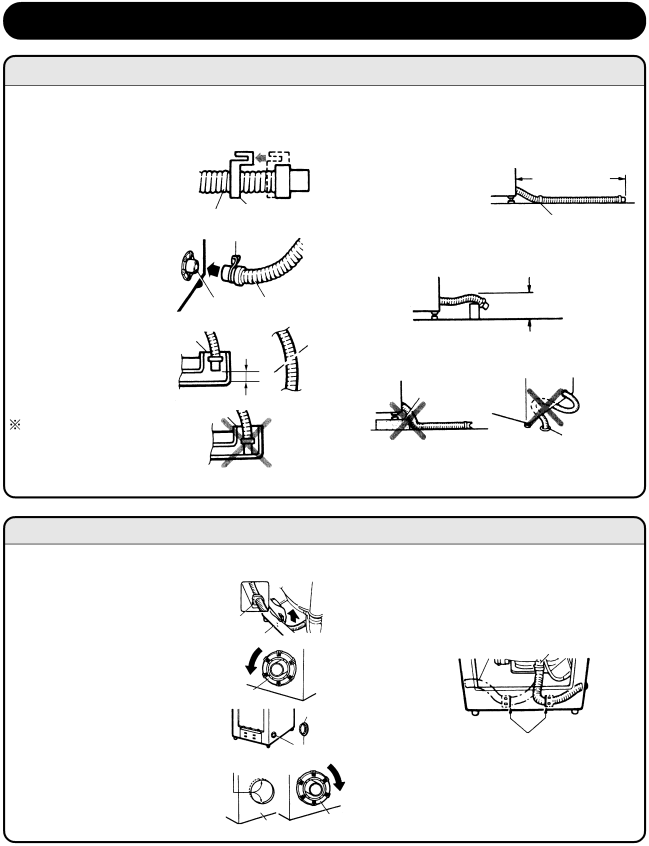

INSTALLATION

Installing the drainage hose

Moving the hook

When inserting the drainage hose into a wash pan or onto a drain pipe, the hook may be moved to facilitate the installation.

When hooking the hose hook into the slot provided on the body of your washing machine,

move the hook back to its initial



Hook

position.









Drainage hose

Insert the drainage hose





Hose band

in as far as it will go, then







use the accessory hose







band to secure it tightly.







Secure the hose tightly.







An improperly secured



Drain pipe Drainage hose

hose may cause leakage.







When attaching the drainage

Gap



hose to a wash pan, etc.,

3 cm or





either leave a gap between





greater

the end of the hose and the







adjacent surface, or cut the



hose diagonally to ensure

Cut diagonally

proper drainage.

Drainage hole



Allowing the flat end of the



hose to come in contact



with the flat surface of the



washing machine will



impair drainage.



Drainage hose extension

Pay close attention to the height of the drainage hose and articles over which it passes. If the drainage hose is too high, proper drainage may not be obtained.

The length of the

drainage hose may be

3 m or less

extended to as much



as 3 m if kept the same



level.

Drainage hose cap



Caution:

If the level of the threshold and the drainage hose is high, the washing machine may not be drained.

15 cm or less

Be careful not to rub the drainage hose. Do not insert the drainage hose under the washing machine. They may be damaged the drainage hose.

Concrete block

Drainage hose

Moving the drainage hose The drainage hose can be installed on either the right or left side.

The connector port for the drainage hose is found on the right side of the washing machine, but it can be changed without disconnecting the internal hose from the drainage valve.

1 Remove the back cover, then grip the stopper securing the internal hose with your fingers and pull it up.

2 Turn the nut for the drainage hose connector port counterclockwise.

3 Pull the internal hose from inside the washing machine to detach.

4 Remove the hose hole cap on the left-hand side, from inside the washing machine align the internal hose with the notch in the connector port and fit into

Stopper

Nut

Tap

Hose hole cap

Upper and lower notches in the hose hole

5 Turn the stopper 180° without removing from hose. Insert the stopper into the securing hole on the left side of the outer shell and press down to secure the internal hose.

Drainage valve

Stopper

6 Attach the back cover, and fit the hose hole cap over the hose hole on the right-hand side.

place, then from outside put the nut in place and turn clockwise to secure.

Outer shell

Nut

7 After moving the drainage hose, be sure to testoperate the washing machine, ensuring that there are no water leaks or unusual noises.

15
