Desa LMFP33NR Wiring Diagram, Specifications, Technical Service, Service Hints, Replacement Parts

Page 25

WIRING DIAGRAM SPECIFICATIONS TECHNICAL SERVICE SERVICE HINTS REPLACEMENT PARTS

25

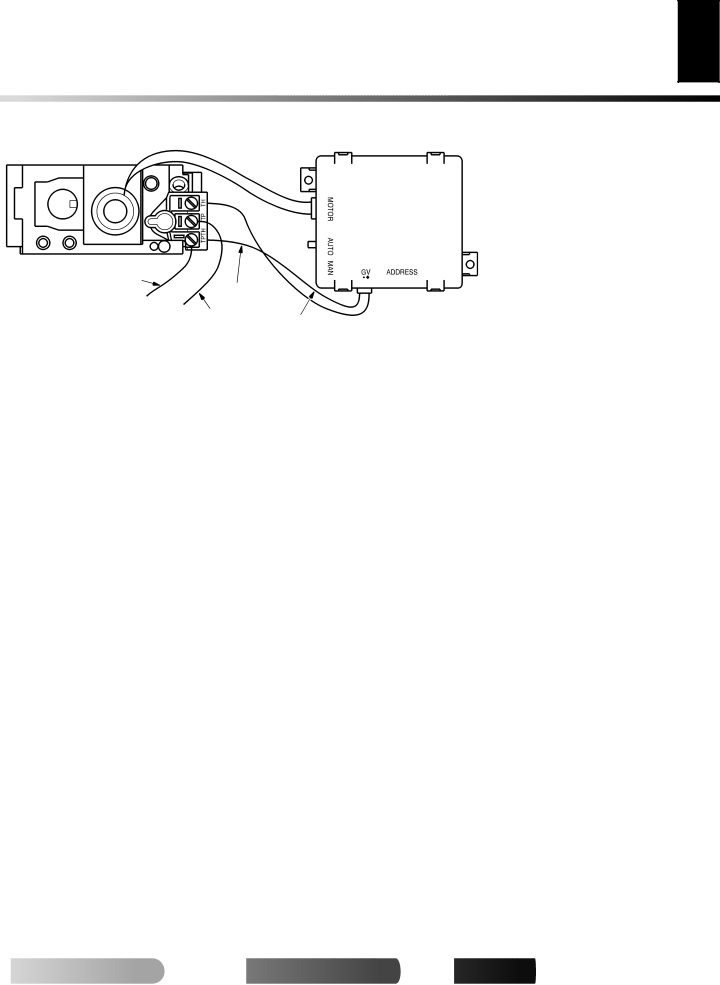

WIRING DIAGRAM

Red



Black



White

Red



SPECIFICATIONS



LMFP33NR

LMFP33PR

Btu (Variable)

23,000/33,000

23,000/33,000

Type Gas

Natural Gas Only

Propane/LP Only

Ignition

Piezo

Piezo

Pressure Manifold

3.5" W.C.

7.9" W.C.

Inlet Gas Pressure (in. of water)



Maximum

10.5"

14"

Minimum*

5.5"

11"

Shipping Weight

122 lbs.

122 lbs.

* For input adjustment





TECHNICAL SERVICE

You may have further questions about installation, operation, or troubleshooting. If so, contact DESA Heating Products’ Technical Service Department at 1-866-672-6040. When calling, please have your model and serial numbers of your heater ready.

You can also visit DESA Heating Products’ technical services web site at www.desatech.com.

SERVICE HINTS

When Gas Pressure Is Too Low

pilot will not stay lit

burner will have delayed ignition

fireplace will not produce specified heat

for propane/LP unit, propane/LP gas supply may be low

You may feel your gas pressure is too low. If so, contact your local gas supplier.

REPLACEMENT PARTS

Note: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), call DESA Heating Products’ Techni- cal Service Department at 1-866-672-6040. When calling DESA Heating Products, have ready

your name and address

model and serial numbers of your fireplace

how fireplace was malfunctioning

type of gas used (propane/LP or natural gas)

purchase date

Usually, we will ask you to return the part to the factory.

PARTS NOT UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), call DESA Heating Products at 1-866-672-6040 for referral information. When calling DESA Heating Products, have ready

model number of your fireplace

the replacement part number

For morevisit www..com

111604-01A
