Page 31



SEAR BURNER TROUBLESHOOTING

31









PROBLEM

CHECK

CURE











Burners burn with a yellow or orange

Inspect Spider/Insect Screens for possible

Clean Spider/Insect Screens. (See Section “Annual Maintenance”)



flame, in conjunction with the smell

obstructions. (Blockage of holes.)





of gas (This is normal for the burner







lighting tube).















Sear Station burner does not light.

Did you ignite the two adjacent main burners

Verify adjacent main burner ignition by visual inspection of a flame.





(See Sear Station burner lighting instructions

WARNING: If ignition does not occur in 5 seconds, turn burner control



for safe lighting procedure)



OFF, wait 5 minutes to let the gas clear before you try again

















Does Burner light with a match?

If you can light Burner with a match, then check the Crossover® Channel on the sear





burner. (See Maintenance for burner removal and cleaning procedure.)











Does the igniter work (Do you see a spark

Try manually lighting the burner (refer to “Lighting the Rotisserie Burner”). Call



when you repeatedly use the snap igniter?

customer service.











If problems cannot be corrected by using these methods, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com®.

OPERATING THE HANDLE LIGHT

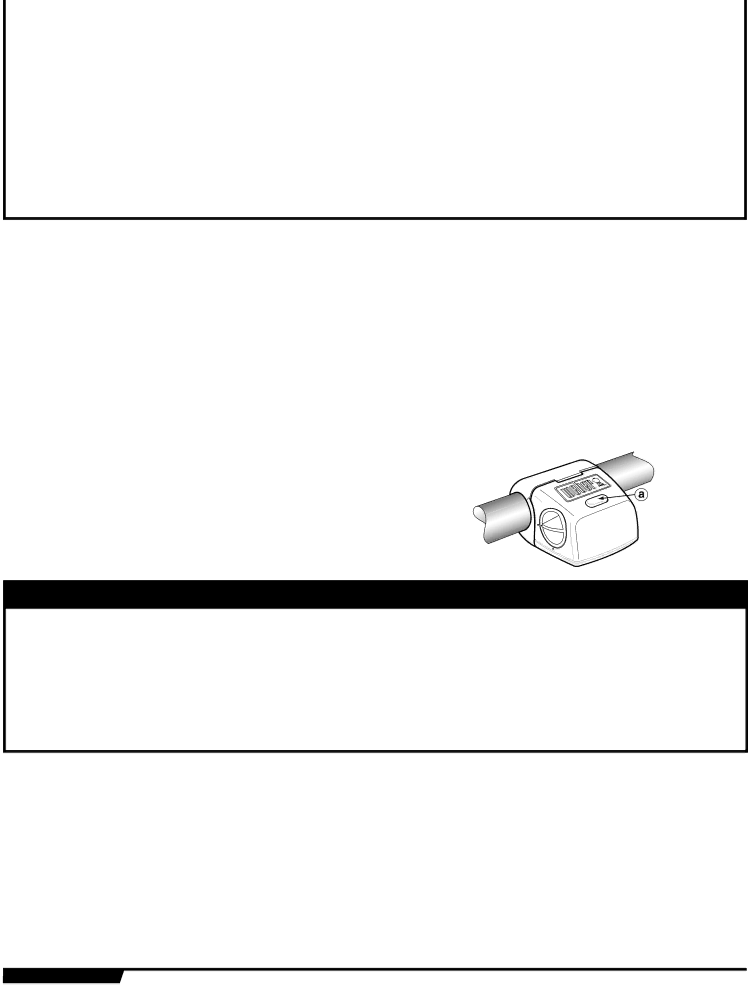

The Weber Grill Out™ Handle Light has a built-in “Tilt Sensor.” With the power button (a) activated, the light will come on when the grill lid is open. The light will turn off when the lid is closed. For daytime use, deactivate the sensor by pressing power button (a).

HANDLE LIGHT TROUBLESHOOTING

PROBLEM

CHECK

CURE







Weber Grill OutHandle

Are the batteries old?

Replace batteries.

Light does not light.





Are the batteries installed correctly?

See assembly illustration.











Is the lid in the up position with the power button ON?

Light will activate when lid is open.









Is the Weber Grill OutHandle Light activated?

Press the power button.



Is the Weber Grill OutHandle Light positioned correctly on the handle?

Adjust position (See assembly illustration).

If problems cannot be corrected by using these methods, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com®.

WWW.WEBER.COM®

Image 31
