Heat & Glo LifeStyle 2197-980 owner manual AUX300CE Module Installation, Fan Installation

Page 52

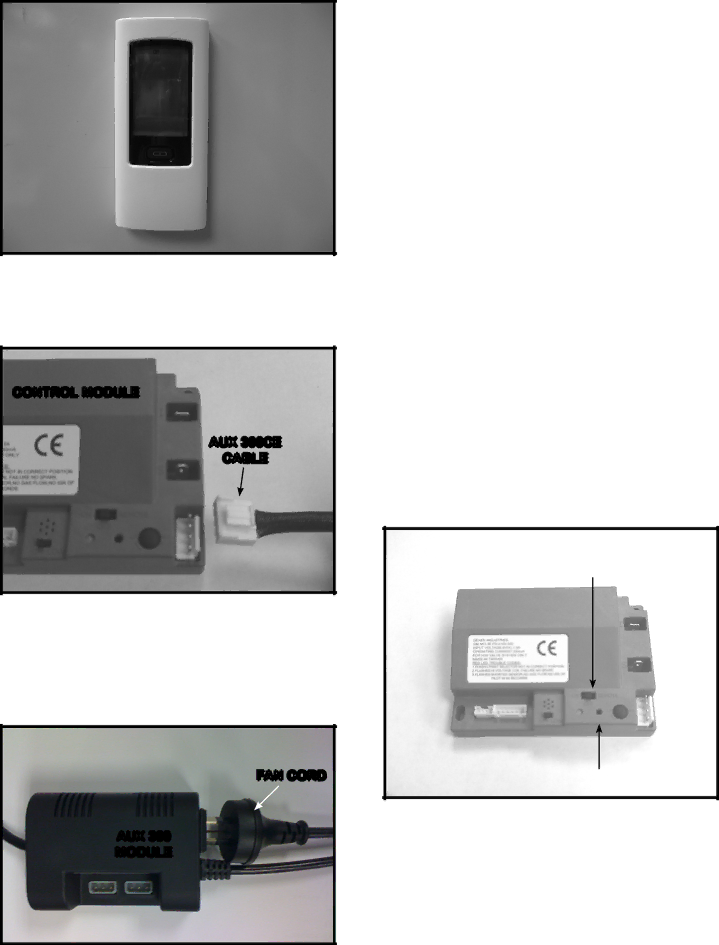

Figure 12.8 Mounting Remote Control Housing

AUX300CE Module Installation

•Insert the 4 hole harness from the AUX300CE module into the 4 pin plug on the control module. See Figure 12.9.

CONTROL MODULE

AUX 300CE

CABLE

Figure 12.9 AUX 300 module installation

Fan Installation

•Insert the 3 prong plug from the fan into the receptacle located in the AUX300CE module. See Figure 12.10.

•Insert 3 prong plug from AUX300CE module into REM/ AUX receptacle of fireplace junction box.

AUX 1:

AUX 2: 3 PRONG PLUG (FAN):

3 steps, HIGH,

ON/OFF 3 steps, timer based,

MED and LOW

3 min. ON, 12 min. OFF

FAN CORD

AUX 300

MODULE

Figure 12.10 Plug Fan into AUX300CE Module

Programming the RC300AU to the Control Module

CAUTION! Risk of burns! DO NOT program the remote control to the control module when fireplace is hot.

•Verify the ON/OFF/REMOTE switch is in the REMOTE position. Green LED light will blink three times and the control module will beep once 5 seconds later when ready. See Figure 12.11.

•Using a small item (such as a paper clip) press and release the LEARN button located near the ON/OFF/ REMOTE switch. See Figure 12.11.

•Control module will beep once and LED will blink green for 10 seconds.

•While the LED is blinking, press the POWER button on the remote control. A double beep will come out of the control module to indicate that it has been programmed successfully.

NOTICE: Up to three remote controls can be programmed into the control module. Simply press a button on the other remote controls during the 10 second programming process to add another remote into the system. It is recommended to program only one RC300AU remote control.

To clear memory in the control module, use a small item (such as a paper clip) to press and release the LEARN button. Control module will beep once and LED will blink green for 10 seconds DO NOT press any buttons on the remote during the ten seconds that the green LED blinks. The memory will be cleared. Note that the RC300AU will not be programmed if it’s in STANDBY mode. Press the ON/OFF button twice to switch to IDLE mode.

REMOTE POSITION

LEARN BUTTON

Figure 12.11 Programming RC300AU

52
