Honeywell Central Heating Cooker Natural Gas manual Spare Parts Burner, Not Shown

Page 39

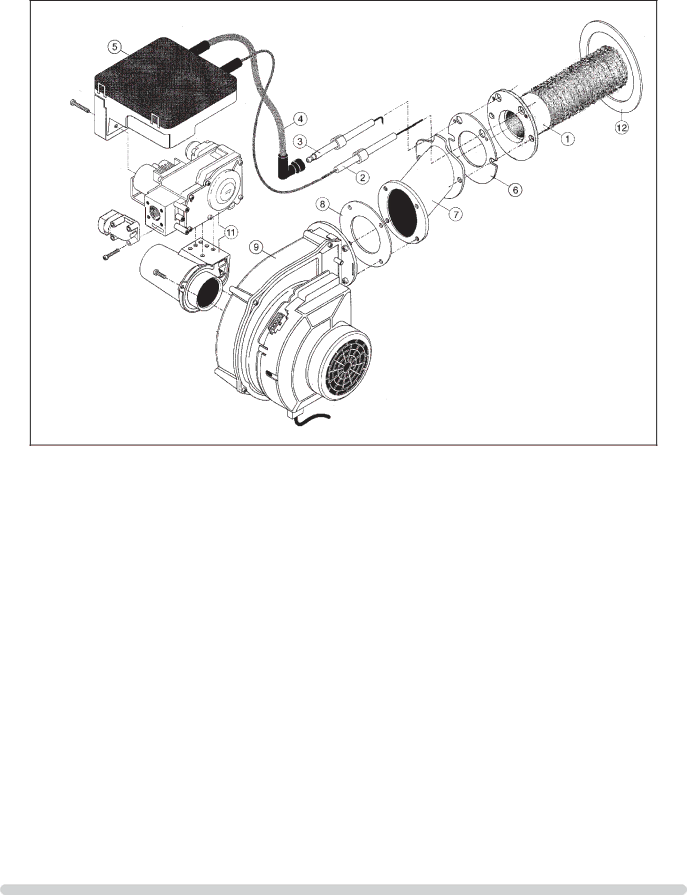

SPARE PARTS: BURNER

Item

Part Description

Cooker

60k-Boiler

80k-Boiler

100k-Boiler

120k-Boiler

Burner

Burner

Burner

Burner

Burner





Part No

Part No

Part No

Part No

Part No

1

Burner Head

603380

603381

603381

603381

603381

2

Ionisation probe + lead

603382

603382

603382

603382

603382

3

Ignition Electrode

603383

603383

603383

603383

603383

4

Ignition Electrode Lead

603384

603384

603384

603384

603384















5

Ignition Control box (Honeywell)

603385

603385

603385

603385

603385















6

Gasket (Burner)

603386

603387

603387

603387

603387

7

Manifold

603388

603389

603389

603389

603389















8

Gasket (fan)

603390

603390

603390

603390

603390















9

Fan

603391

603391

603392

603392

603393















11

Gas Valve + venturi

603395

603395

603395

603395

603395















12

Burner gasket

603396

603397

603397

603397

603397















N/S*

Gas Pipe Seals

603399

603399

603399

603399

603399















N/S*

Flexible Gas Pipe

603347

603347

603347

603347

603347















N/S*

Speed Control Board ECS002

-

-

-

-

603394















*Not Shown

39

Image 39
