Set the surround parameters according to the mode.

6 SURROUND PARAMETER

(Main unit)

(Remote control unit)

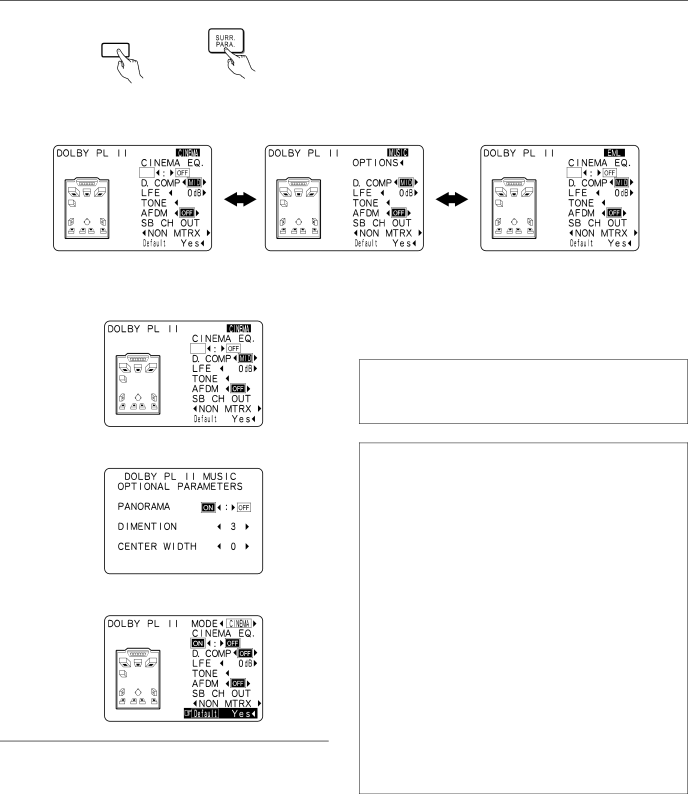

•The mode switches as shown below each time the button is pressed.

DOLBY PL II CINEMA

DOLBY PL II MUSIC





DOLBY PL II EMULATION



















































































































































































































































































































































7

Set the various surround parameters.



• CINEMA EQ setting

















































































































•PANORAMA/DIMENSION/CENTER WIDTH setting

•DEFAULT setting

Stop pressing buttons once you have completed setting the surround parameters. After several seconds the normal display reappears and the settings you have made are automatically set.

NOTE:

•When making parameter settings, the display will return to the regular condition several seconds after the last button was pressed and the setting will be completed.

Surround parameters e

Pro Logic II Mode:

The Cinema mode is for use with stereo television shows and all programs encoded Dolby Surround.

The Music mode is recommended as the standard mode for autosound music systems (no video), and is optional for A/V systems.

The Pro Logic Emulation mode offers the same robust surround processing as original Pro Logic in case the source contents is not of optimum quality.

Select one of the modes (“Cinema”, “Music” or “EML”).

Panorama Control:

This mode extends the front stereo image to include the surround speakers for an exciting “wraparound” effect with side wall imaging.

Select “OFF” or “ON”.

Dimension Control:

This control gradually adjust the soundfield either towards the front or towards the rear.

The control can be set in 7 steps from 0 to 6.

Center Width Control:

This control adjust the center image so it may be heard only from the center speaker; only from the left/right speakers as a phontom image; or from all three front speakers to varying degrees.

The control can be set in 8 steps from 0 to 7.

50

Page 49 Page 51
Image 50
Page 49 Page 51
