Amana Bottom Mount Refrigerator service manual Procedure

Page 69

B136SPK2 ¾" Side Panel Kit

Procedure

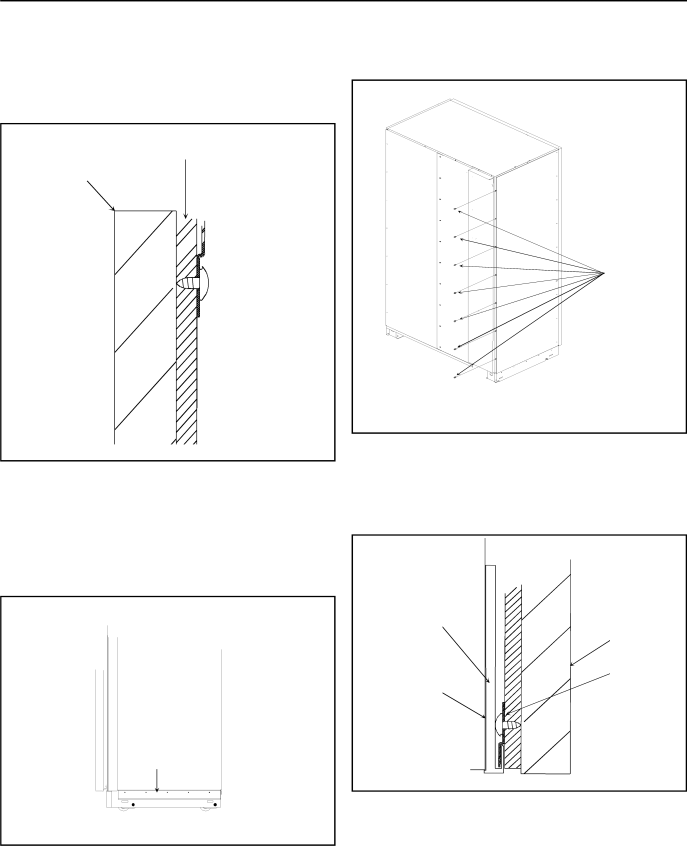

1.Mount left and right panel brackets to wood panel using 3/16" phillips screws provided.

•If base panel is not 1/4" thick, use plastic shims provided with kit to bring base panel depth up to 1/4".

1/4" filler

3/4" raisedpanel overlay panel

Panel bracket

4.While facing back of refrigerator, remove 7 screws from right edge of refrigerator cabinet.

Remove

screws

2.Mount bottom panel brackets using 5, 3/16" phillips screws.

•If base panel is not 1/4" thick use plastic shims provided with kit to bring base panel depth up to 1/4".

3.Mount bottom cabinet extrusion using 5, 1/4" flat head phillips screws.

5.Slide panels into place on left and right side of refrigerator. Verify that panel bracket is resting in track on bottom cabinet extrusion. For smoother installation, apply bar soap to cabinet extrusions and panel brackets.

Bottom cabinet
extrusion	Panel
	Panel

Bottom cabinet extrusion

Side of refrigerator

Panel bracket

November 1996

69

RS1200001

Image 69
