B136CKR1 and B136CKL1 Custom Handle Kit

Procedures

Refrigerator Door

1.Remove handle insert by prying off one end and pulling handle insert away from door.

2.Remove nine 3/8" screws from refrigerator handle. Remove handle from door.

Caution

To avoid property damage, maintain grip on handle after screws have been removed. Handle will be loose once screws have been removed and may fall.

5.

Drive low profile screws into panel with screwdriver.



• Panel brackets must be exactly flush to 1/16"



inboard of panel edge.



• For ease of panel installation, 2 people are



required to lift and guide panel into trim.



• Install 1 panel at a time.

6.

Align panel in trim and push evenly. For smoother



installation, apply bar soap on door trim and



refrigerator trim. If panel binds loosen top door trim.



Adjust panel and retighten. See "3/4" Panel



Mounted to 1/4" Filler Panel and Location of Panel



Brackets for 3/4" Panel Installations", page 4.

7.

Install new refrigerator door trim by replacing nine,



3/8" screws.

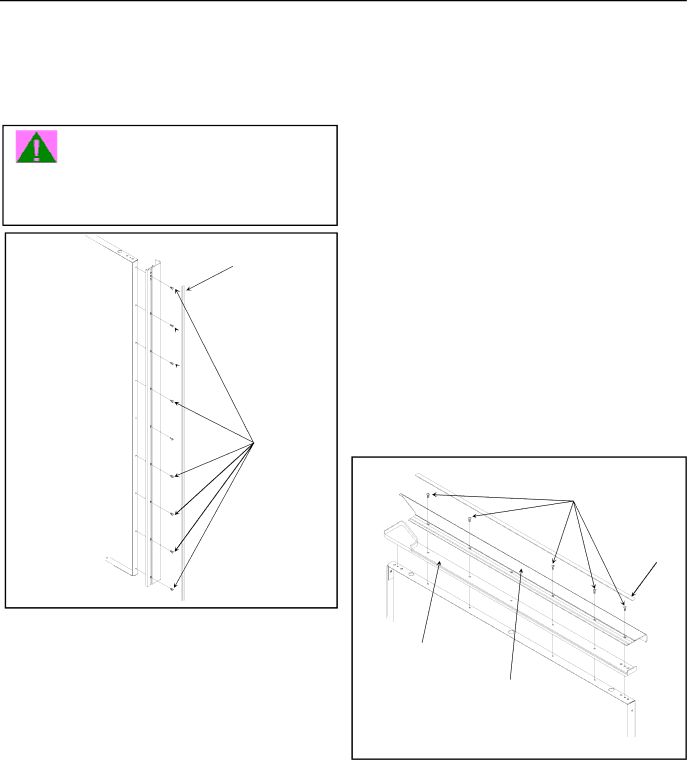

Refrigerator handle

Handle

Insert

3/8" screws

8. Replace handle insert. Start one edge of insert in

track and press other edge into track while working

up side of door.

Freezer Drawer

1.Remove freezer drawer handle insert by prying one end out of track and pulling upward, away from drawer.

2.Remove five, 1" screws from freezer drawer handle. Lift freezer handle and handle/trim spacer off freezer drawer.

1" screws

Handle insert

3.Align panel brackets (supplied) with center edge of panel see "Refrigerator, Freezer Door Panel with Custom Handle" page 4 . Install brackets using 1/4" screws.

•Brackets and screws are provided with refrigerator, and not a part of this kit. Custom panels are consumers responsibility.

•Panel should have handle already installed.

•Head of screws used to mount handles to panel must not exceed .15" in height. Screw head height higher than .15" will interfere when installing panels. If screws head height is greater than .15", countersink heads in back of panel.

4.If base panel is less than 1/4", use plastic shims. Shims go between bracket and wood to space panels to desired depth.

•Shims are provided with refrigerator, and are not part of this kit.

Handle/ Trim

spacer Freezer handle

3.Remove trim insert from one side trim piece by prying one end out of track and pulling upward away from the drawer.

4.Remove five 3/8" screws from side trim. Remove side trim from freezer drawer.
