Jura Capresso 13623 manual Maintenance

Page 43

5 Maintenance

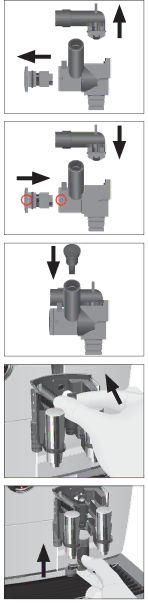

TDismantle the milk system into its individual parts.

TRinse all the parts under running water. If there are severely dried-on milk residues, firstly immerse the individual parts in JURA Cappuccino Cleaner and then rinse them thor- oughly.

TReassemble the milk system. When doing this, note the arrows (circled in red in the picture) on the individual parts.

TFit the air intake pipe.

TFit the assembled individual parts back in the dual spout and press it firmly.

TAttach the bottom part of the milk system to the part already inserted from below.

43

Image 43
