Acer 2500 manual Boot

Models: 2500

1 130

Download 130 pages 12.9 Kb

Page 53

Boot

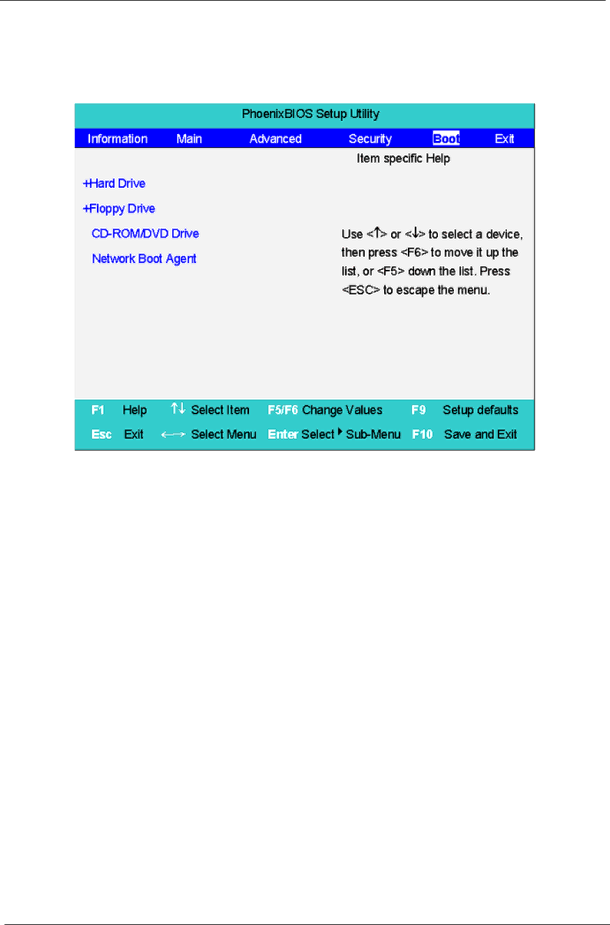

This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices includes the distette drive in module bay, the onboard hard disk drive and the CD-ROM in module bay.
