Disassembling the Main Unit

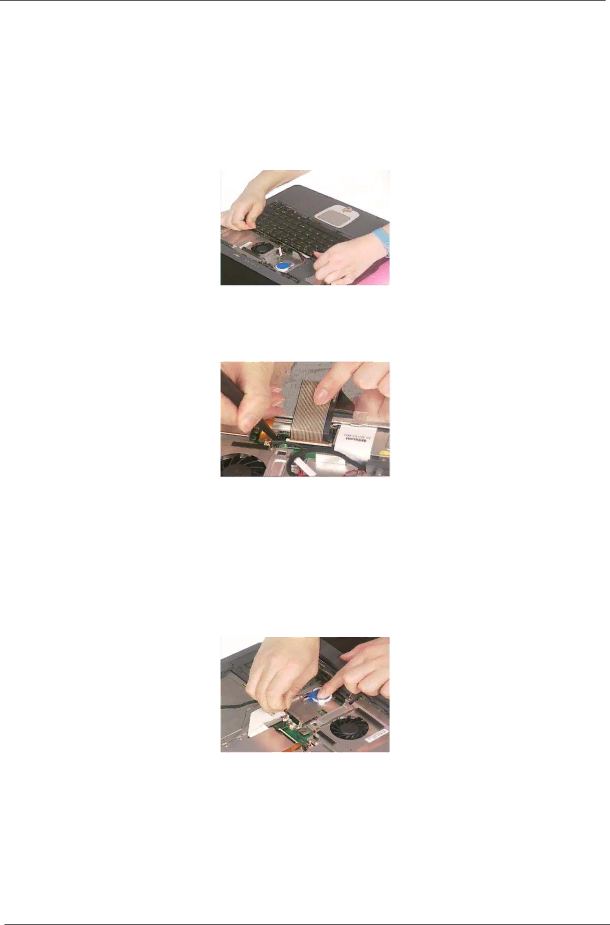

Removing the Keyboard
1.See “Removing the Battery” on page 52.
2.See “Removing the Middle Cover” on page 56.
3.To remove the keyboard, carefully pull the keyboard out and upwards as the pticute shows.
4.Use a plastic tweezers or a plastic flat screwdriver to disconnect the keyboard cable from the main board carefully, then remove the keyboard.
Removing the RTC Battery
1.See “Removing the Battery” on page 52.
2.See “Removing the Middle Cover” on page 56.
3.See “Removing the Keyboard” on page 63.
4.Disconnect the RTC battery cable then remove it.
Removing the Fan
1.See “Removing the Battery” on page 52.
2.See “Removing the Middle Cover” on page 56.
3.See “Removing the Keyboard” on page 63.
4.Disconnect the fan cable and remove the three screws fastening the fan. Then remove the fan.
63 | Chapter 3 |
