Removing the HDD Bracket
1.See “Removing the Battery” on page 52.
2.See “Removing the Middle Cover” on page 56.
3.See “Removing the Keyboard” on page 63.
4.See “Removing the Upper Case Assemly” on page 65.

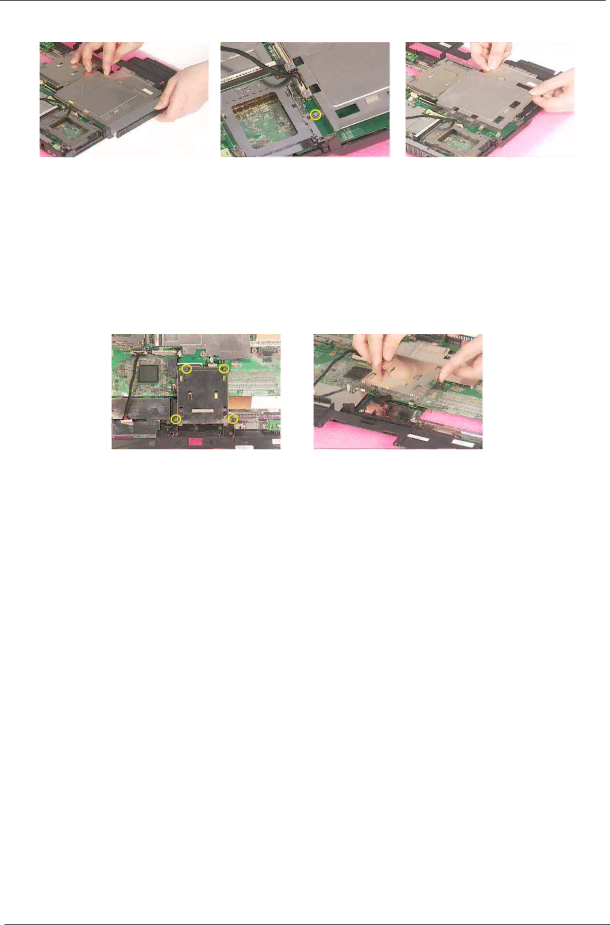

5.Remove the four screws holding the HDD bracket, then remove the HDD bracket.
Removing the Main Board
1.See “Removing the Battery” on page 52.
2.See “Removing the Middle Cover” on page 56.
3.See “Removing the Keyboard” on page 63.
4.See “Removing the Upper Case Assemly” on page 65.
5.See “Removing the Fan” on page 63.
6.See “Removing the Thermal Module” on page 64.
7.See “Removing the VGA Thermal Plate” on page 67.
8.See “Removing the CPU Heatsink Plate” on page 67.
9.See “Removing the Second Fan Bracket” on page 68.
10.See “Removing the ODD Module(2)” on page 68.
11.See “Removing the HDD Bracket” on page 69.
12.Disconnect the launch board cable. Tear off the tape that fastens the speaker set cable. Then disconnect the speaker set cable.
