3.See “Removing the LCD Module” on page 57.
4.See “Removing the Keyboard” on page 63.
5.See “Removing the Upper Case Assemly” on page 65.
6.See “Removing the Touchpad Board” on page 66.

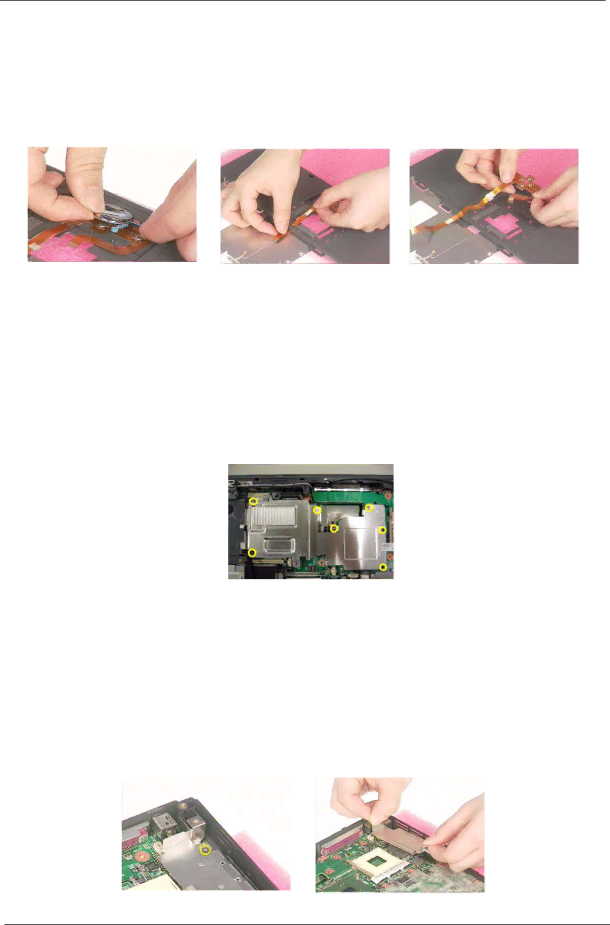

7.Remove the touchpad scroll key then remove the touchpad cable.
Removing the VGA Thermal Plate
1.See “Removing the Battery” on page 52.
2.See “Removing the Middle Cover” on page 56.
3.See “Removing the Keyboard” on page 63.
4.See “Removing the Fan” on page 63.
5.See “Removing the Thermal Module” on page 64.
6.Remove the seven screws holding the VGA thermal plate then remove it.
Removing the CPU Heatsink Plate
1.See “Removing the Battery” on page 52.
2.See “Removing the Middle Cover” on page 56.
3.See “Removing the Keyboard” on page 63.
4.See “Removing the Fan” on page 63.
5.See “Removing the Thermal Module” on page 64.
6.Remove the screw that fastens the CPU heatsink plate then remove it.
67 | Chapter 3 |
