Removing the LCD Module
Removing the Middle Cover
1.See “Removing the Battery” on page 52.

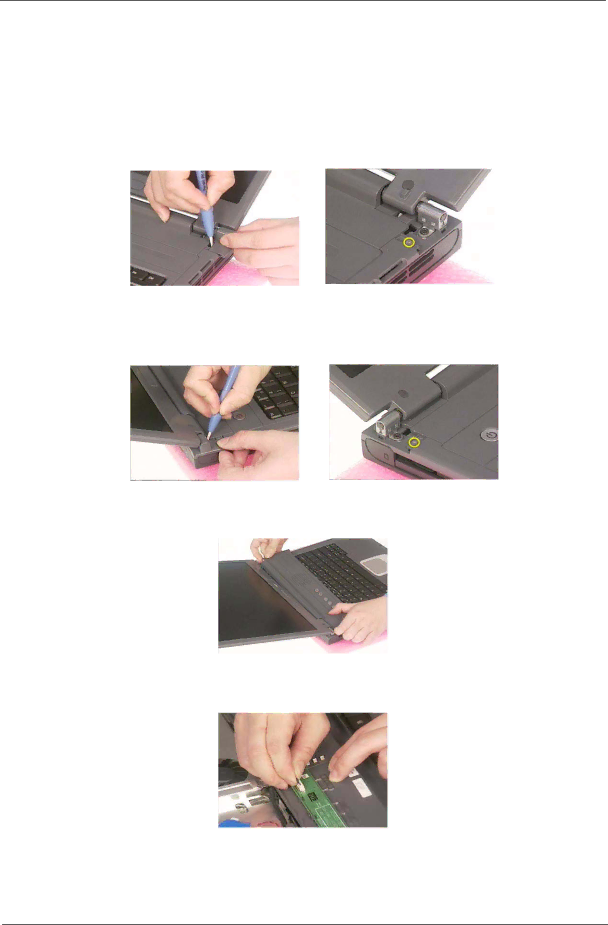

2.To remove the middle cover, first use a plastic flat screwdriver to remove the right hinge cap.
3.Remove the screw that secures the middle cover.
4.Remove the left hinge cap.
5.Then remove the screw holding the middle cover on the other side.
6.Detach the middle cover from the machine.
7.Disconnect the launch board cable then remove the middle cover off the main unit.
.
Removing the Launch Board
1.See “Removing the Battery” on page 52.
2.See “Removing the Middle Cover” on page 56.
