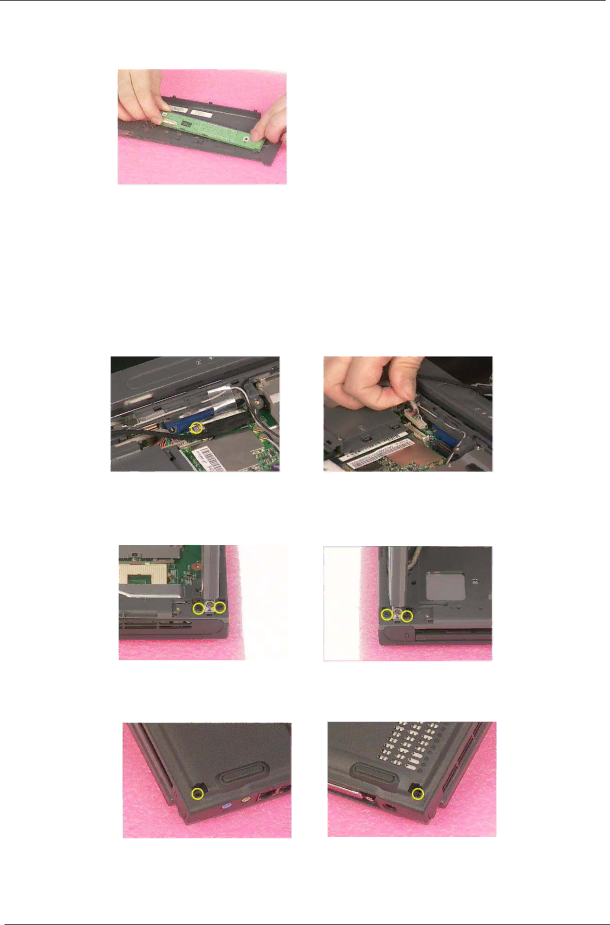

3.Remove the two screws and then detach the launch board from the middle cover.
Removing the LCD Module
1.See “Removing the Battery” on page 52.
2.See “Removing the Middle Cover” on page 56.
3.See “Removing the Launch Board” on page 56.
4.Remove the screw that fastens the LCD coaxial cable and disconnect the cable. Then disconnect the LCD inverter cable.
5.Remove the four screws holding the LCD hinge; two on the right and two on the left.Remove the four screws holding the LCD hinge; two on the right and two on the left.
6.Remove the two screws on the bottom; one on the right and the other on the left.
7.Then you can remove the entire LCD module from the main unit.
