Page 60

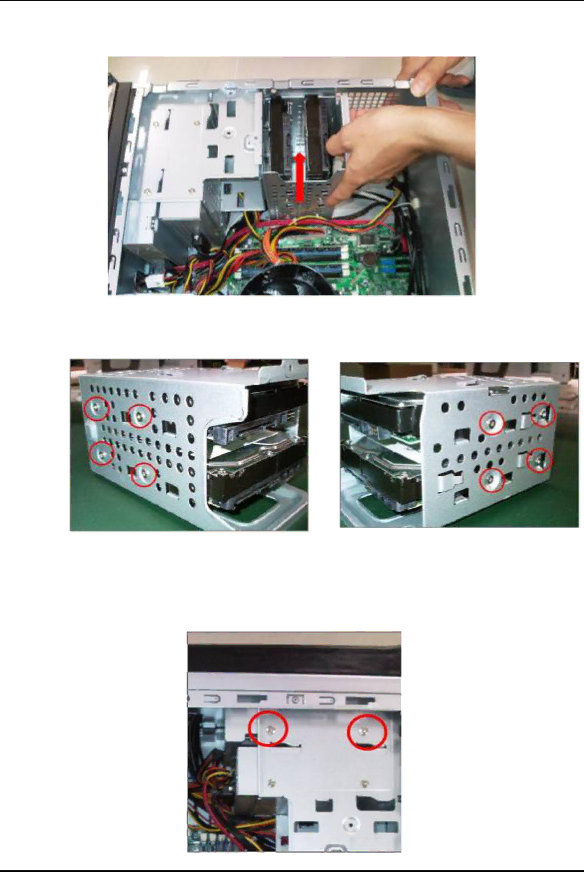

4.3Remove the HDD cage

4.4Disconnect the eight screws fixed in HDD cage side.

5.Removing the ODD

5.1 Disconnect the screw fixed in ODD cage

54
