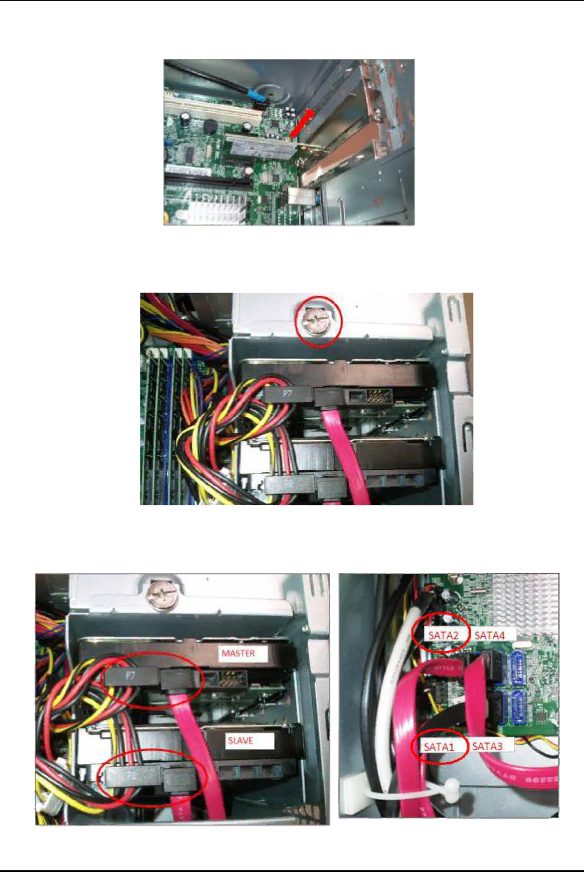

3.6Pull the leaver outwards a little to release the PCI latch then remove other add-on card.

4.Removing the HDD

4.1 Disconnect the screw fixed in the HDD cage.

4.2Disconnect the SATA HDD cable and HDD power-cable from the rear of HDD and MB

53

Image 59

Acer M5150 manual Removing the HDD
