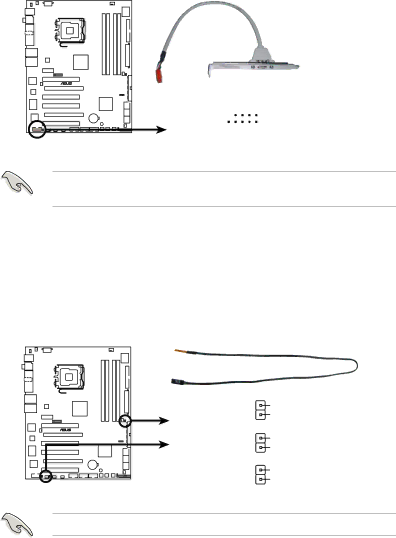

5.IEEE 1394a port connector (10-1 pin IE1394_2)

This connector is for a IEEE 1394a port. Connect the IEEE 1394a module cable to this connector, then install the module to a slot opening at the back of the system chassis.

COMMANDO

IE1394_2

COMMANDO IEEE 1394 connector





+12V TPB2+ GND TPA2+







































































-

-

GND +12V



GND







TPB2



TPA2

PIN1

You can connect the 1394 cable to ASUS Q-Connector (1394, red) first, and then install the Q-Connector (1394) to the 1394 connector onboard.

6.Thermal sensor cable connectors (2-pin OPT_TEMP1/2/3)

These connectors are for temperature monitoring. Connect the thermal sensor cables to these connectors and place the other ends to the devices, which you want to monitor temperature. The optional fan1~3 can work with the temperature sensors for a better cooling effect.



OPT_TEMP1

Temperature1



Ground

COMMANDO

OPT_TEMP2

Temperature2



Ground



OPT_TEMP3

Temperature3



Ground

COMMANDO Thermal sersor cable connectors



The thermal sensor cable is purchased separately.

2-30

Chapter 2: Hardware information
