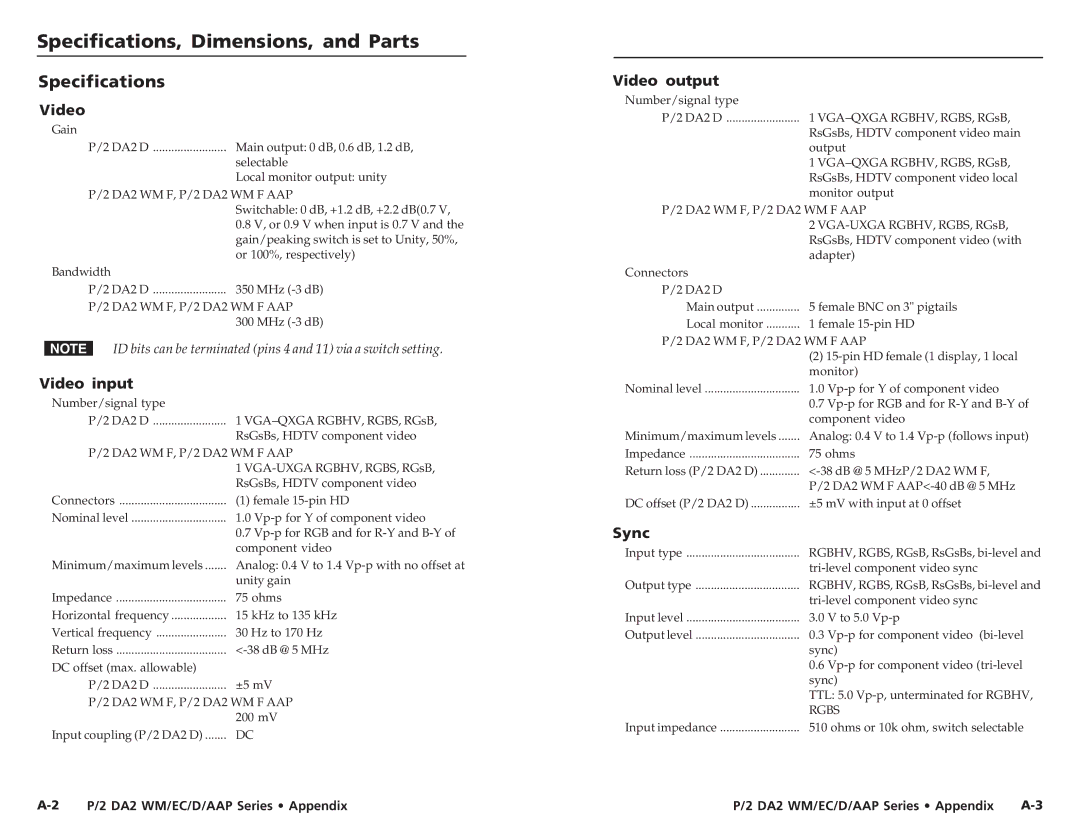

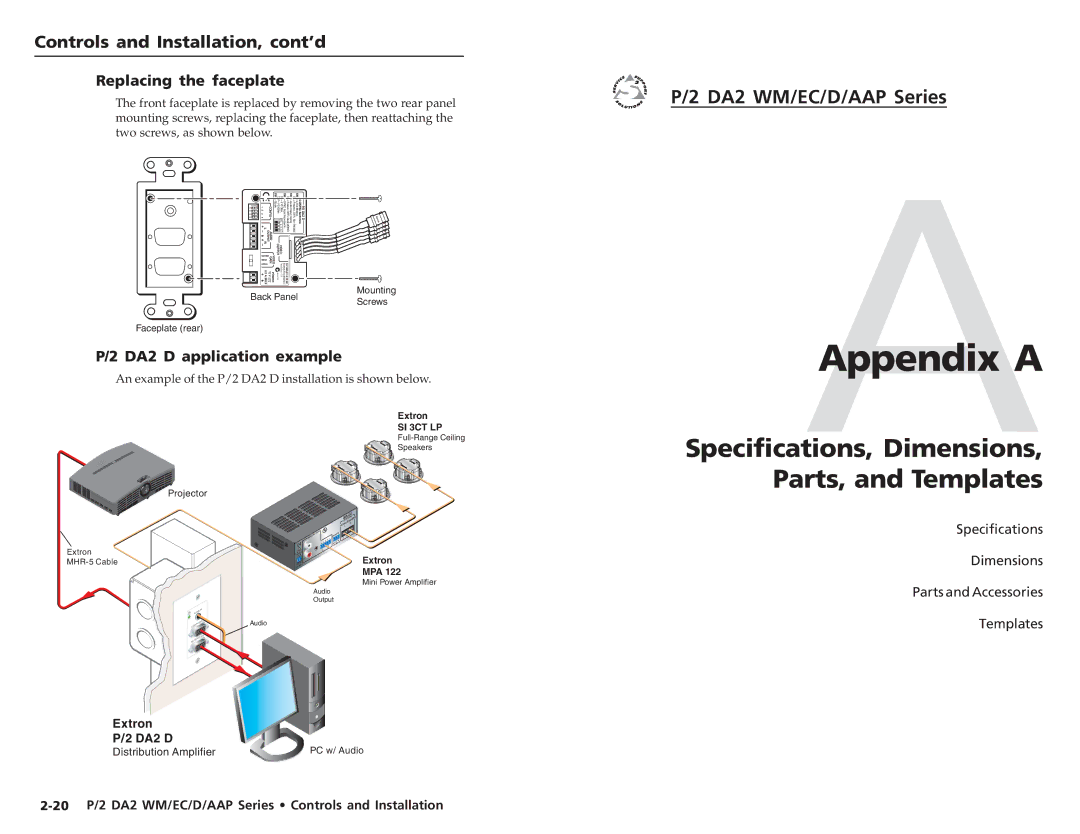

Specifications, Dimensions, and Parts

Specifications

Video

Gain

P/2 DA2 D

Main output: 0 dB, 0.6 dB, 1.2 dB,



selectable



Local monitor output: unity

P/2 DA2 WM F, P/2 DA2 WM F AAP

Switchable: 0 dB, +1.2 dB, +2.2 dB(0.7 V,

0.8V, or 0.9 V when input is 0.7 V and the gain/peaking switch is set to Unity, 50%, or 100%, respectively)

Bandwidth



P/2 DA2 D

350 MHz (-3 dB)

P/2 DA2 WM F, P/2 DA2 WM F AAP 300 MHz (-3 dB)

NID bits can be terminated (pins 4 and 11) via a switch setting.

Video input

Number/signal type



P/2 DA2 D

1 VGA–QXGA RGBHV, RGBS, RGsB,



RsGsBs, HDTV component video

P/2 DA2 WM F, P/2 DA2 WM F AAP

1 VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs, HDTV component video

Connectors

(1) female 15-pin HD

Nominal level

1.0 Vp-p for Y of component video



0.7 Vp-p for RGB and for R-Y and B-Y of



component video

Minimum/maximum levels

Analog: 0.4 V to 1.4 Vp-p with no offset at



unity gain

Impedance

75 ohms

Horizontal frequency

15 kHz to 135 kHz

Vertical frequency

30 Hz to 170 Hz

Return loss

<-38 dB @ 5 MHz

DC offset (max. allowable)



P/2 DA2 D

±5 mV

P/2 DA2 WM F, P/2 DA2 WM F AAP



200 mV

Input coupling (P/2 DA2 D)

DC

Video output

Number/signal type



P/2 DA2 D

1 VGA–QXGA RGBHV, RGBS, RGsB,



RsGsBs, HDTV component video main



output



1 VGA–QXGA RGBHV, RGBS, RGsB,



RsGsBs, HDTV component video local



monitor output

P/2 DA2 WM F, P/2 DA2 WM F AAP

2 VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs, HDTV component video (with adapter)

Connectors



P/2 DA2 D



Main output

5 female BNC on 3" pigtails

Local monitor

1 female 15-pin HD

P/2 DA2 WM F, P/2 DA2 WM F AAP

(2)15-pin HD female (1 display, 1 local monitor)

Nominal level

1.0 Vp-p for Y of component video



0.7 Vp-p for RGB and for R-Y and B-Y of



component video

Minimum/maximum levels

Analog: 0.4 V to 1.4 Vp-p (follows input)

Impedance

75 ohms

Return loss (P/2 DA2 D)

<-38 dB @ 5 MHzP/2 DA2 WM F,



P/2 DA2 WM F AAP<-40 dB @ 5 MHz

DC offset (P/2 DA2 D)

±5 mV with input at 0 offset

Sync

Input type

RGBHV, RGBS, RGsB, RsGsBs, bi-level and



tri-level component video sync

Output type

RGBHV, RGBS, RGsB, RsGsBs, bi-level and



tri-level component video sync

Input level

3.0 V to 5.0 Vp-p

Output level

0.3 Vp-p for component video (bi-level



sync)



0.6 Vp-p for component video (tri-level



sync)



TTL: 5.0 Vp-p, unterminated for RGBHV,



RGBS

Input impedance

510 ohms or 10k ohm, switch selectable

A-2

P/2 DA2 WM/EC/D/AAP Series • Appendix

P/2 DA2 WM/EC/D/AAP Series • Appendix

A-3
