About the controls on the air

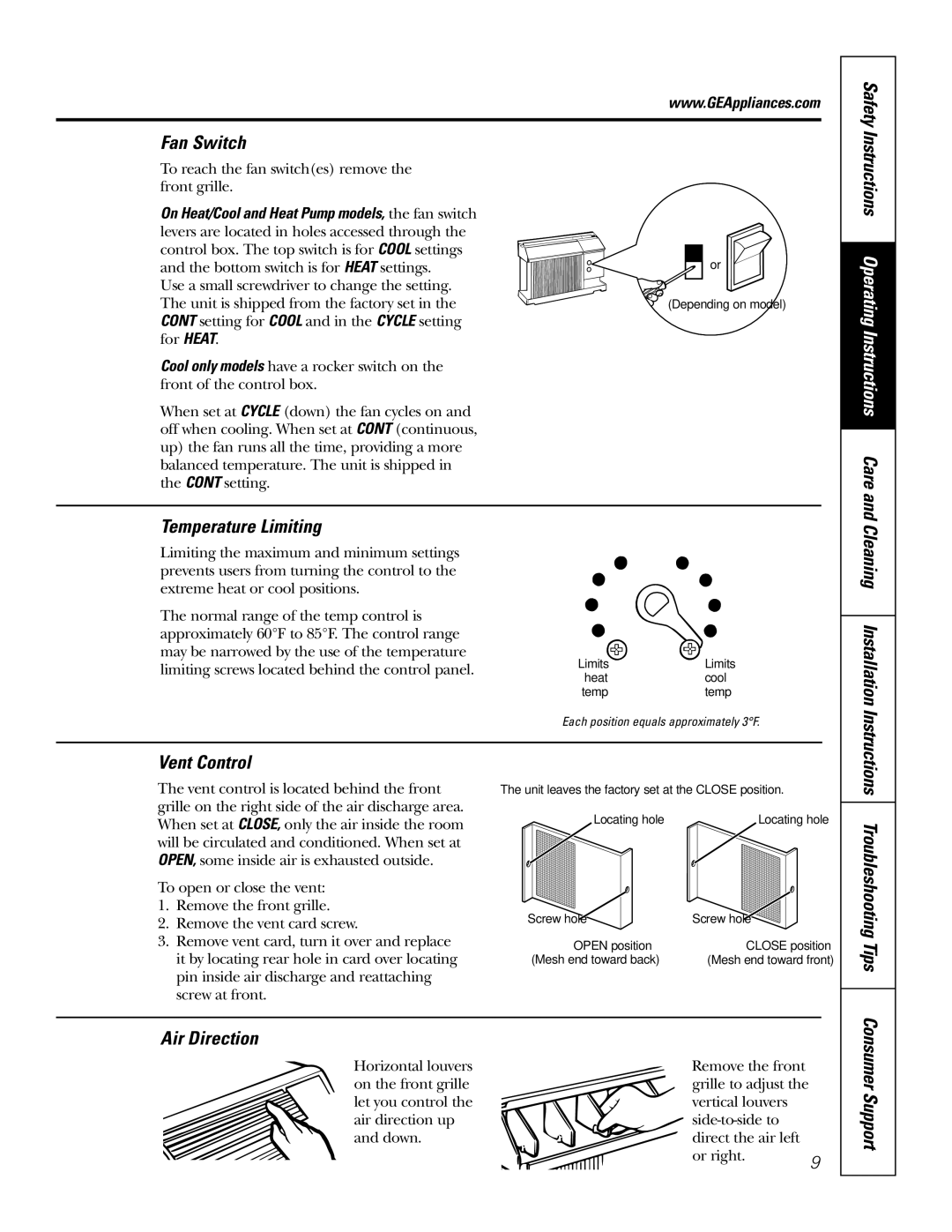

Auxiliary Controls – Temperature Limiting
To reach the auxiliary controls remove the front grille. Access them through the small rectangular opening above the control panel.
Temperature limiting can reduce energy costs by limiting the lowest temperature that can be set for cooling. Temperature limiting is controlled by switches
TL1 (C) (Temp. Limit 1 – Cool)
TL2 (C) (Temp. Limit 2 – Cool)
TL3 (C) (Temp. Limit 3 – Cool)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| No function (reserved |
|
|
|
|
|
|
|
|
|
|
|
|
| UP |
| for future use) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1 | 2 | 3 | 4 | DOWN | ||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
| |||
Temperature limiting during COOL mode
(all temperatures shown in °F)
| UP | DOWN | Minimum | Maximum |
|
| NONE | 1, 2, 3 | 60° | 85° |
|
| 1 | 2, 3 | 64° | 85° |
|
| 1, 2 | 3 | 66° | 85° |
|
| 2 | 1, 3 | 68° | 85° |
|
| 2,3 | 1 | 70° | 85° |
|
| 1, 2, 3 | NONE | 72° | 85° |
|
| 1, 3 | 2 | 74° | 85° |
|
| 3 | 1, 2 | 76° | 85° |
|
|
|
|
|
|
|
