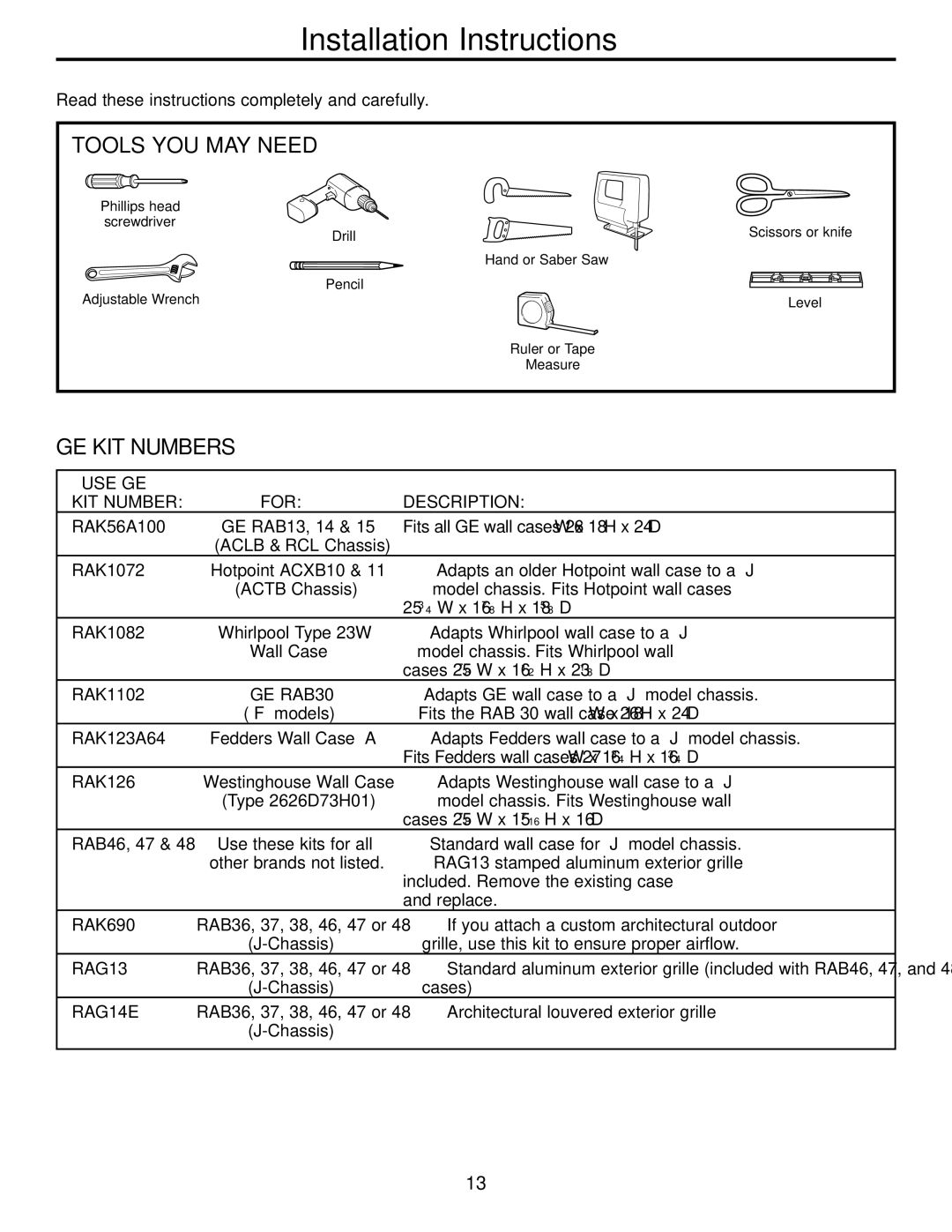

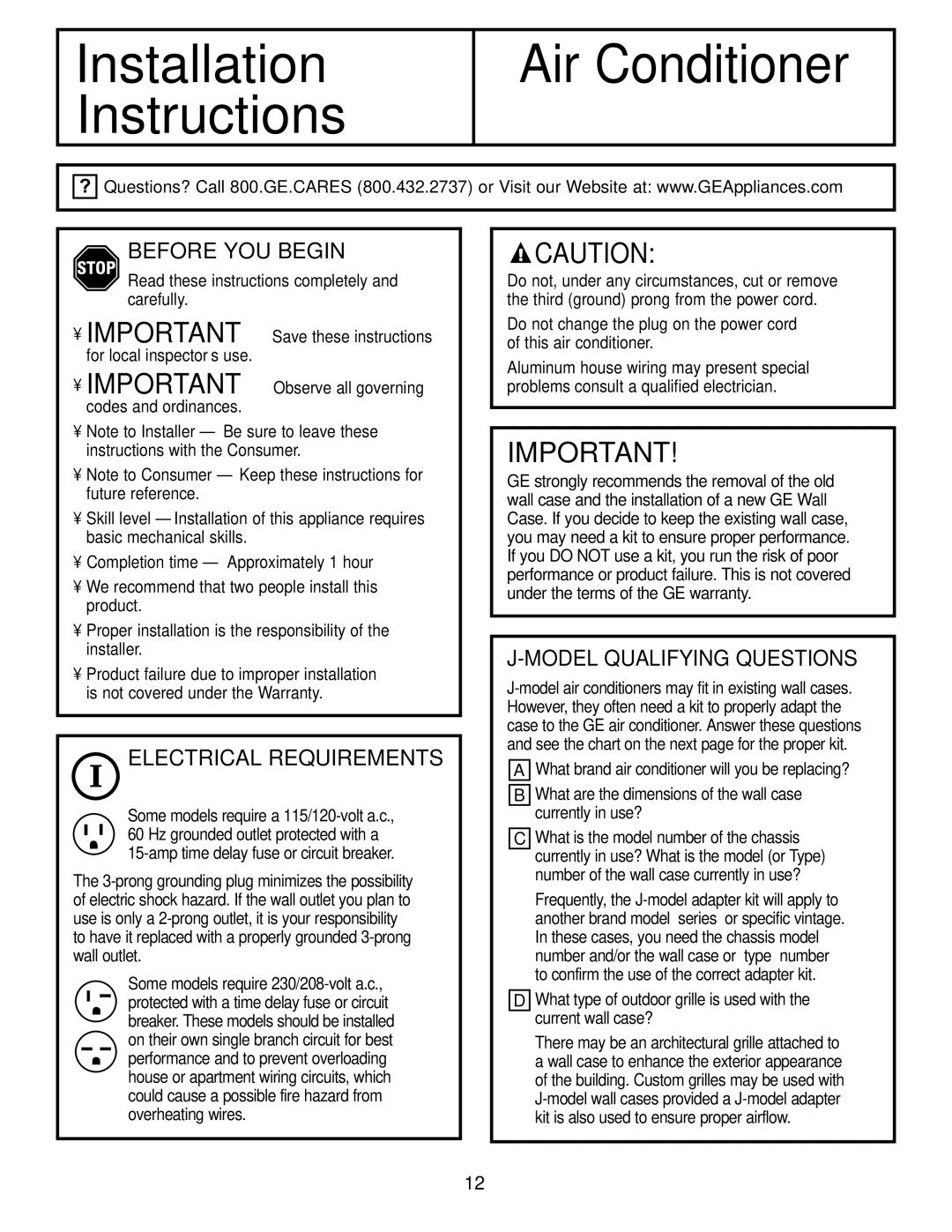

Installation Instructions
Read these instructions completely and carefully.
TOOLS YOU MAY NEED
Phillips head screwdriver
Drill
Hand or Saber Saw
Pencil
Scissors or knife
Adjustable Wrench | Level |
Ruler or Tape
Measure
GE KIT NUMBERS
USE GE |
|
|
KIT NUMBER: | FOR: | DESCRIPTION: |
RAK56A100 | GE RAB13, 14 & 15 | Fits all GE wall cases 26″W x 18″H x 24″D |
| (ACLB & RCL Chassis) |
|
RAK1072 | Hotpoint ACXB10 & 11 | Adapts an older Hotpoint wall case to a “J” |
| (ACTB Chassis) | model chassis. Fits Hotpoint wall cases |
|
| 253⁄4″W x 167⁄8″H x 185⁄8″D |
RAK1082 | Whirlpool Type 23W | Adapts Whirlpool wall case to a “J” |
| Wall Case | model chassis. Fits Whirlpool wall |
|
| cases 257⁄8″W x 161⁄2″H x 231⁄8″D |
RAK1102 | GE RAB30 | Adapts GE wall case to a “J” model chassis. |
| (“F” models) | Fits the RAB 30 wall case 26″W x 18″H x 24″D |
RAK123A64 | Fedders Wall Case “A” | Adapts Fedders wall case to a “J” model chassis. |
|
| Fits Fedders wall cases 27″W x 163⁄4″H x 163⁄4″D |
RAK126 | Westinghouse Wall Case | Adapts Westinghouse wall case to a “J” |
| (Type 2626D73H01) | model chassis. Fits Westinghouse wall |
|
| cases 257⁄8″W x 157⁄16″H x 16″D |
RAB46, 47 & 48 | Use these kits for all | Standard wall case for “J” model chassis. |
| other brands not listed. | RAG13 stamped aluminum exterior grille |
|
| included. Remove the existing case |
|
| and replace. |
RAK690 | RAB36, 37, 38, 46, 47 or 48 | If you attach a custom architectural outdoor |
| grille, use this kit to ensure proper airflow. | |
RAG13 | RAB36, 37, 38, 46, 47 or 48 | Standard aluminum exterior grille (included with RAB46, 47, and 48 wall |
| cases) | |
RAG14E | RAB36, 37, 38, 46, 47 or 48 | Architectural louvered exterior grille |
|
| |
|
|
|
13
