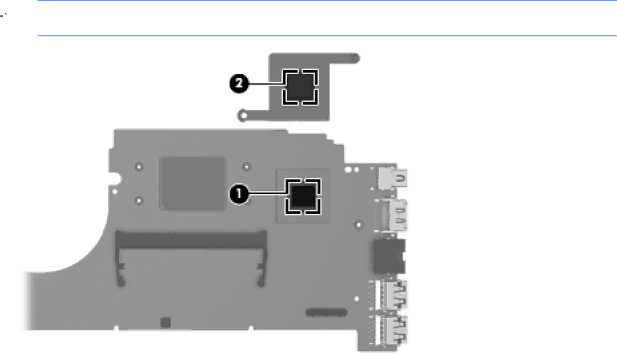

NOTE: The following illustration shows the replacement thermal material locations. A thermal pad is used on the post controller hub (1) and the post controller hub heat sink (2).
Reverse this procedure to install the post controller hub heat sink.
