Removing the Hard Drive
Electrostatic
Discharge
Service
Consideration
Cables and
Connectors
Preparing the
Computer for
Disassembly
Battery Pack
Palmrest
Assembly
Keyboard and
Heatspreader
Processor
Hard Drives
Upper CPU
Cover
DVD Drive
Battery
Charger
Board
Modem
Display Panel
Assembly
Speaker
Assembly
Diskette
Drive
Fan Assembly
System
Board
Memory
Module
To remove the hard drive, complete the following steps:
1.Prepare the computer for disassembly.
2.Remove the Palmrest Assembly.
3.Remove the keyboard and heatspreader.

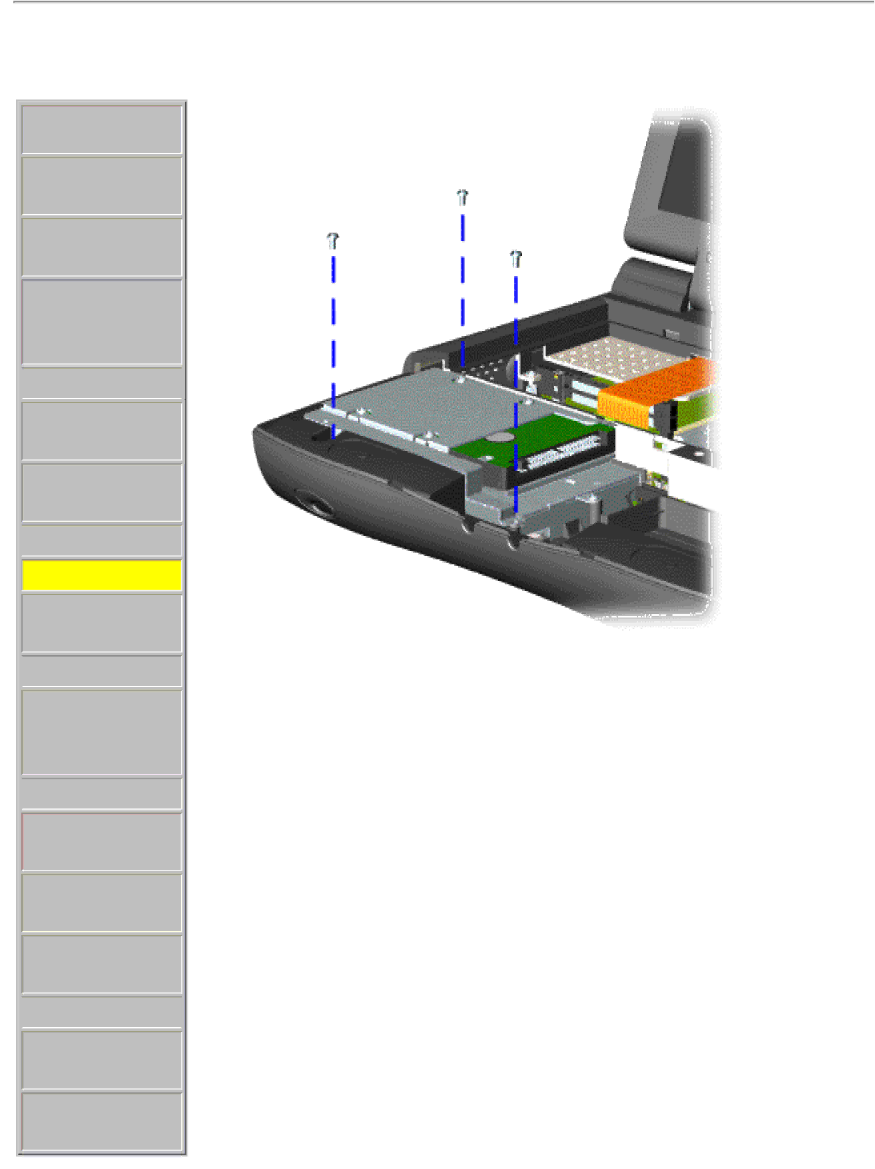

4.Remove two screws from the hard drive mounting bracket and lift up the hard drive.
Next Step
