Maintenance & Service Guide
Presario 1660 Model
MSG Index Home Page Notice Preface Product Description Troubleshooting Illustrated Parts Catalog Removal & Replacement Procedures Specifications Pin Assignments Battery Pack Operations
Removing the Modem
Electrostatic
Discharge
Service
Considerations
Cables and
Connectors
Preparing the
Computer for
Disassembly
Battery Pack
Palmrest
Assembly
Keyboard and
Heatspreader
Processor
Hard Drives
Upper CPU
Cover
DVD Drive
Battery
Charger Board
Modem
Display Panel
Assembly
Speaker
Assembly
Diskette Drive
Fan Assembly
System Board
Memory
Module

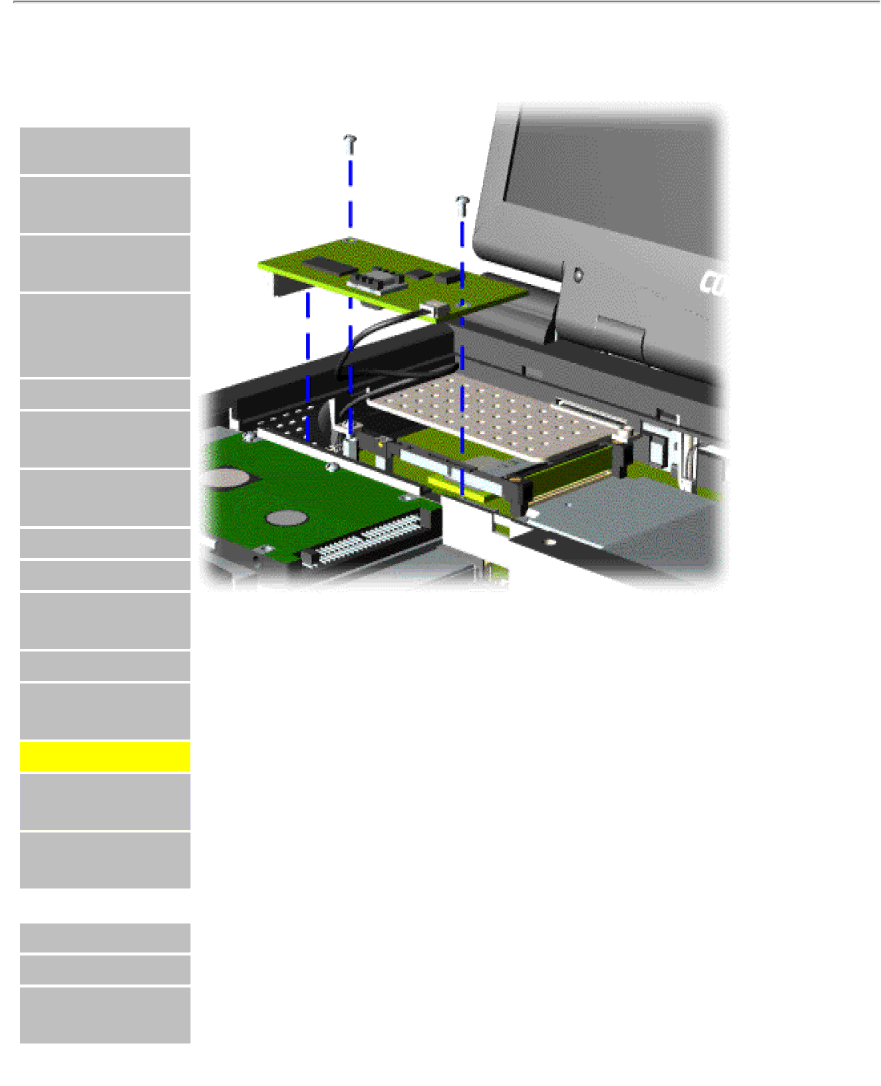

To remove the modem, complete the following steps:
1.Prepare the computer for disassembly.
2.Remove the Palmrest Assembly.
3.Remove the keyboard and heatspreader.
4.Remove the two screws securing the modem to the system board.
5.Pull the modem off the connector on the left- hand side of the system board.
Next Step
