Removing the Display Panel Assembly (continued)

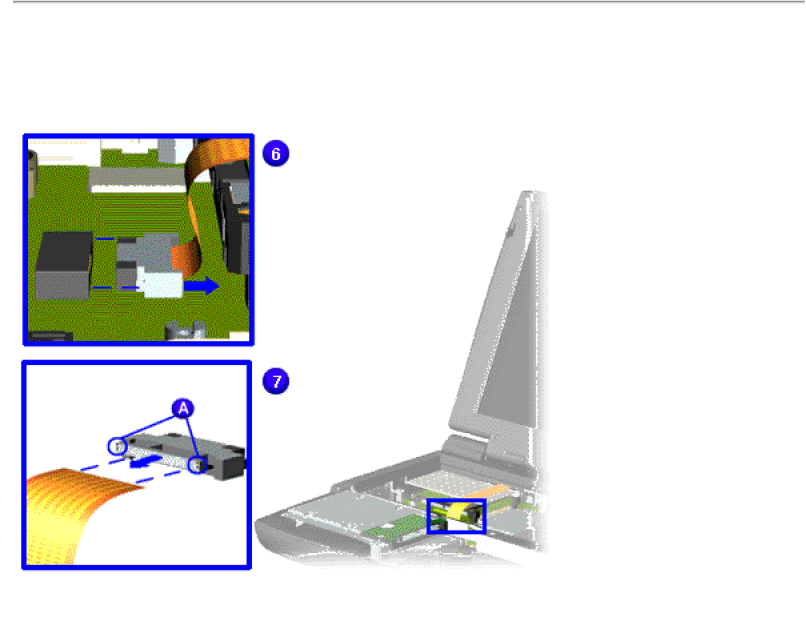

6. Remove the flex cable and end cap from the connector on the system board
.
7. Very carefully pry the LVDS connector cable guide out of the metal sleeve
, using a needle, toothpick or other sharp object in the small holes (labeled
).
8. Slide the cable out of the connector cable guide.
