One. For information, see the onscreen HP Image Zone Help that came with your software.

When you receive a low-ink warning message on the control panel display, make sure you have a replacement print cartridge available. You should also replace the print cartridges when you see faded text or if you experience print quality issues related to the print cartridges.

To find out the reorder number for all the print cartridges that your HP All-in-One supports, see Order print cartridges. To order print cartridges for your HP All-in-One, go to www.hp.com/learn/suresupply. If prompted, choose your country/region, follow the prompts to select your product, and then click one of the shopping links on the page.

To replace the print cartridges

1.Make sure the HP All-in-One is on.

Caution If the HP All-in-One is off when you open the print-carriage access door to access the print cartridges, the HP All-in-One will not release the cartridges for changing. You might damage the HP All-in-One if the print cartridges are not docked safely on the right side when you try to remove them.

2.Open the print-carriage access door by pulling it forward.

The print carriage moves to the far right side of the HP All-in-One.

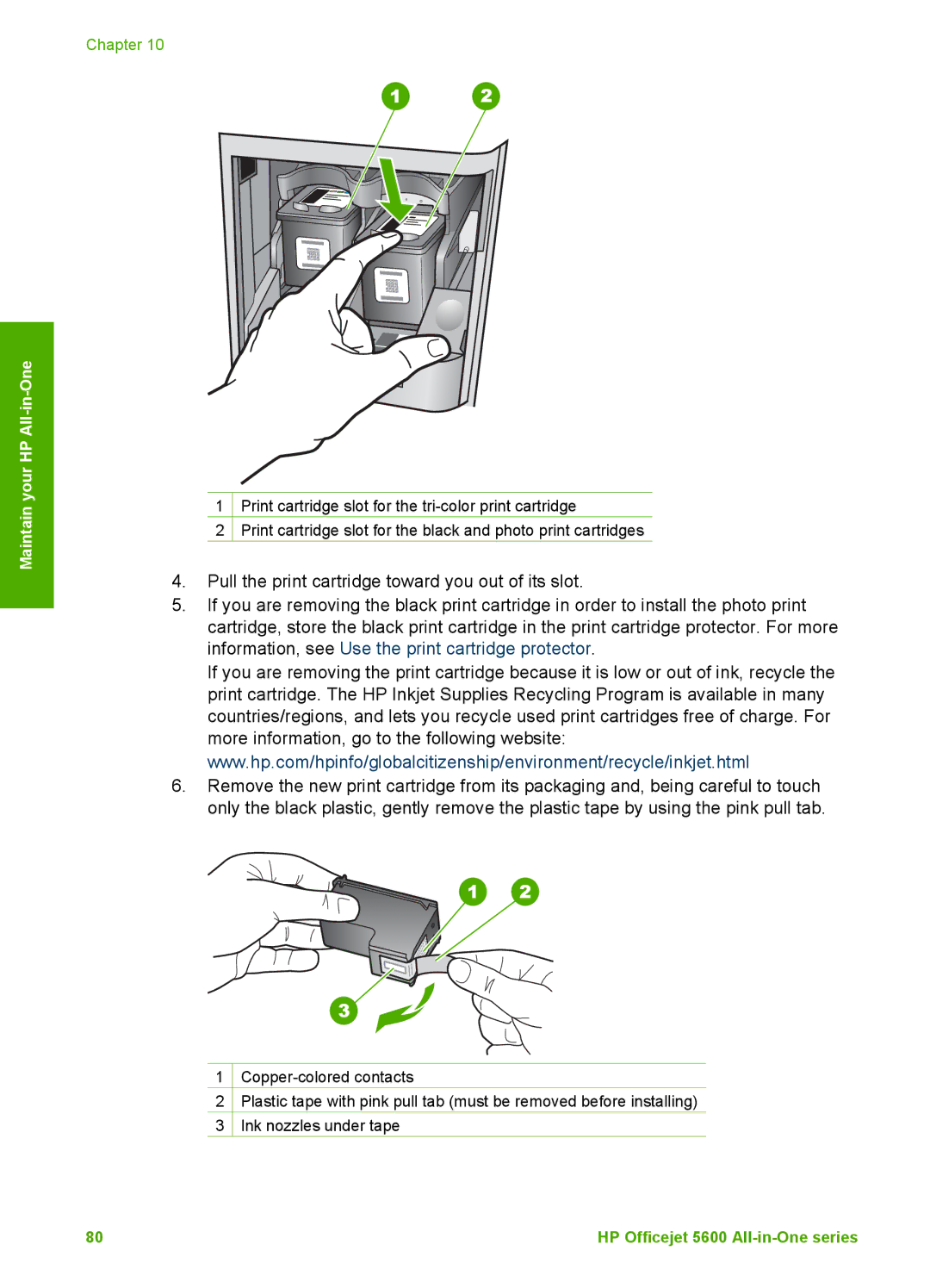

3.Wait until the print carriage is idle and silent, and then lightly press down on a print cartridge to release it.

If you are replacing the tri-color print cartridge, remove the print cartridge from the slot on the left.

If you are replacing the black or photo print cartridge, remove the print cartridge from the slot on the right.

Maintain your HP All-in-One

User Guide

79

Page 81 Page 83
Page 82
Image 82
HP 5610xi, 5610v, 5605 manual To replace the print cartridges
Page 81 Page 83

5610, 5610v, 5605, 5610xi specifications

The HP 5605, 5610v, and 5610xi are integral components of HP's versatile line of managed networking equipment, primarily aimed at delivering robust performance for small to medium-sized businesses. Built with a focus on reliability and efficiency, these models cater to the increasing demands of today's network environments.

One of the main features of the HP 5605 is its capacity as a Layer 3 switch, allowing for efficient management of traffic between multiple networks. With the potential to support Virtual LANs (VLANs), administrators can segment network traffic for better performance and security. The device is equipped with Gigabit Ethernet ports, enabling high-speed connectivity essential for data-intensive applications. Moreover, the HP 5605 provides advanced management features that allow for the customization of network settings to optimize performance per specific business requirements.

Meanwhile, the HP 5610v series enhances networking capabilities through its innovative technologies. It supports advanced routing protocols like Open Shortest Path First (OSPF) and Border Gateway Protocol (BGP), which are crucial for directing traffic efficiently across complex networks. The inclusion of Power over Ethernet (PoE) allows the connection of devices such as IP phones and wireless access points without needing additional power sources. Such conveniences streamline installation and reduce overhead costs.

The HP 5610xi model takes performance a notch higher with its expanded capabilities, tailored for growing networks. It boasts a higher throughput and supports additional features like IPv6 for future-proofing, recognizing the growing need for devices that can handle modern networking demands.

Security is a critical factor and these devices come equipped with various security features including Access Control Lists (ACLs) and options for encrypted connections. This ensures that sensitive data is well protected against unauthorized access.

Overall, the HP 5605, 5610v, and 5610xi are designed to offer reliability, high performance, and advanced functionalities suited to businesses operating in dynamic environments. Their capabilities to support a variety of traffic management protocols, along with the convenience of PoE, make them a valuable addition to any organizational network architecture. With easy management interfaces and robust security options, these models stand out as essential tools for modern networking challenges.
