Page 65

Image 65

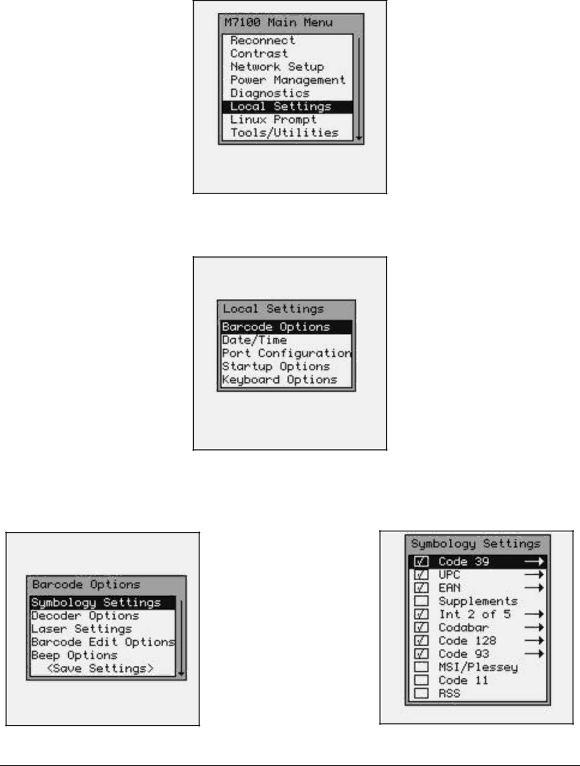

Local Settings, Laser & CCD Only

Note: For instructions on setting the 2D Area Imager see Local Settings, Imager Only.

The “Local Settings” function sets much of the M71V2 handheld terminal’s internal hardware and software.

Barcode Options

The “Barcode Options” function allows you to make changes to the way specific bar codes are scanned by the internal scan engine.

Symbology Settings

The “Symbology Settings” function allows you to make changes to each individual bar code.

Page 65

Image 65
