The optional Termination Character is transmitted at the end of the data.

None - None

Tab - Horizontal Tab

CR - Carriage Return (default)

CRLF - Carriage Return & Line Feed

Custom – User Defined Termination Character

If the User Defined Termination Character is selected, then use the left 3and 4right arrow keys to select the custom character.

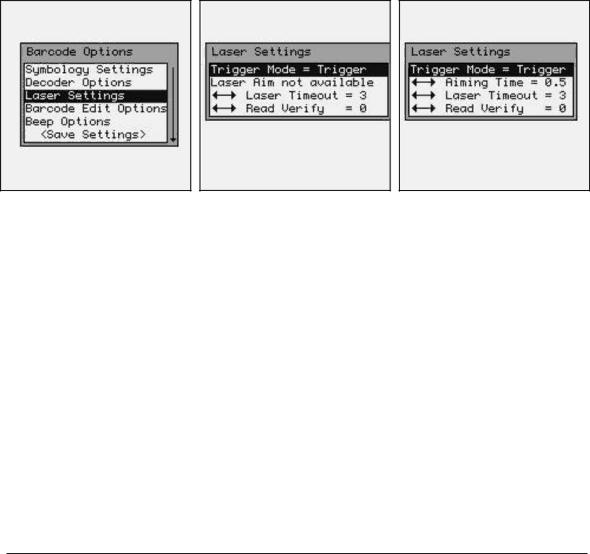

Laser / CCD Setting

The “Laser Setting” function allows you to set the laser scan characteristics.

Standard Laser or CCD LR or ALR installed

These options are used to configure the laser or CCD device behavior, and the trigger mode for the M71V2 handheld terminal.

Trigger Mode
Trigger	Trigger activates scanning device for as long as trigger is held up
	to the Laser Timeout value in seconds. (Recommended)
Pulse	Continues to keep the scanner active even when the trigger is not
	held down, up to Laser Timeout value in seconds.
Aiming Time	This function turns on the laser point or laser aim mode.
	Note: The laser aim mode is only available on the Long Range
	(LR) and Advanced Long Range (ALR) laser.

105
