Indications

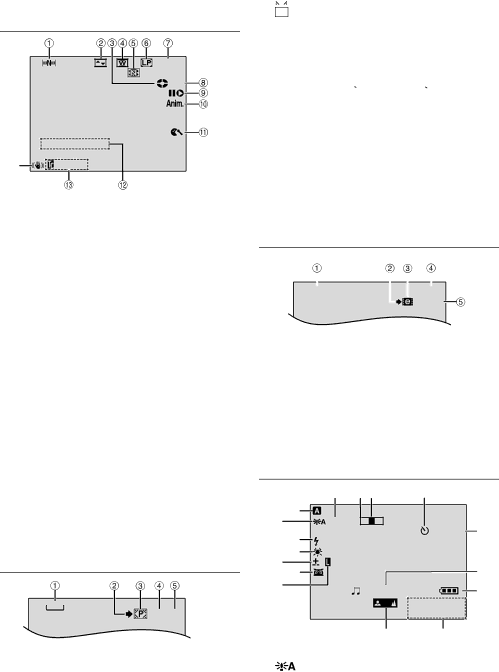

LCD Monitor/Viewfinder Indications During Video Recording Only

		1h40m
		REC
	SOUND 12 b i t
r	15:55
a Navigation Indicator		( pg. 47)

(Appears when “NAVIGATION” is set to other than “MANUAL”.)

bSelected Wipe/Fader Effect Indicator

	( pg. 32)
c Tape Running Indicator	( pg. 17)
(Rotates while tape is running.)
d Selected Wide Mode Indicator	( pg. 37)
e Thumbnail Storing Indicator	( pg. 47)

(Appears while the captured image is being stored as a thumbnail image in the memory

card.)
f Recording Speed Mode (SP/LP)	( pg. 34)
g Tape Remaining Time	( pg. 17)
h •REC: (Appears during recording.)	( pg. 17)
•PAUSE: (Appears during Record-Standby
mode.)	( pg. 17)

iInsert Editing/Insert Editing Pause Mode

( pg. 57)

j5S/Anim.: Displays the 5-Second Recording mode or Animation recording mode. ( pg. 36)

k Wind Cut Indicator	( pg. 37)
l Sound Mode Indicator	( pg. 34)
(Appears for approx. 5 seconds after turning on
the camcorder.)
m Time Code	( pg. 38, 41)
n Digital Image Stabiliser (“DIS”)	( pg. 36)

LCD Monitor/Viewfinder Indications During D.S.C. Recording Only

1024

15

aImage Size: 1600 (1600 x 1200), 1280 (1280 x 960), 1024 (1024 x 768) or 640

(640 x 480)	( pg. 39)
b Shooting Icon	( pg. 23)

(Appears and blinks during shooting.)
c Card Icon	( pg. 23)

: Appears during shooting.

: Blinks in white when a memory card is not loaded.

: Blinks in yellow while the camcorder is reading the data in the memory card such as titles/frames, NAVIGATION thumbnail images, video clips, still images, etc.

dPicture Quality: (FINE) and

(STANDARD) (in order of quality)	( pg. 39)
e Remaining Number Of Shot	( pg. 23)

(Displays the approximate remaining number of shots that can be stored during D.S.C. recording, or the remaining number of storable thumbnail images when it reaches 10 or less during video recording. The number increases or decreases depending on the Picture Quality/Image Size, etc.)

LCD Monitor/Viewfinder Indications During E-Mail Clip Recording

1 6 0	E-CL IP	0h1: 0m
		00 : 15

aImage Size: 240 (240 x 176), 160 (160 x 120)

	( pg. 38)
b Shooting Icon	( pg. 23)
(Appears and blinks during shooting.)
c E-Mail Clip Recording Indicator	( pg. 48)

dMemory Card Remaining Time For E-Mail Clip

Recording	( pg. 48)
e E-Mail Clip Recording Time	( pg. 48)

LCD Monitor/Viewfinder Indications During Both Video And D.S.C. Recording

	8	9g	0
	1
2	40 x W T		O q
	3	3
	4
5	3		w
	6
7		EXPLOSION	e
			1 0 . 11 . 0 4
			10 : 00
		t	r
a Operation Mode			( pg. 13)
b	: Gain Up Mode		( pg. 35)
