JVC HR-S8700EU FRONT DISPLAY PANEL

Masterpage:Left-index

6 EN

Filename [HRS8700EU1.fm]

Page 6 July 20, 2000 4:29 pm

INDEX (cont.)

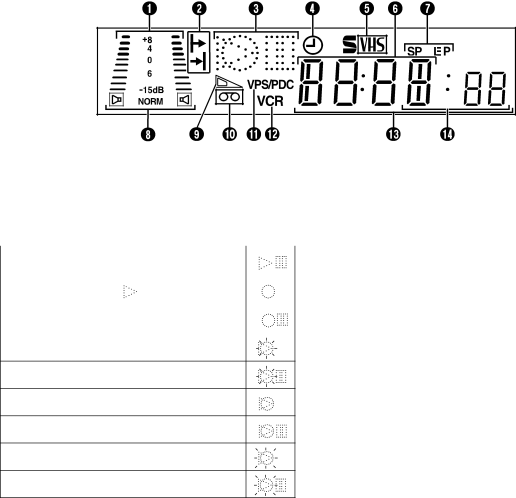

FRONT DISPLAY PANEL

AB.E.S.T. Picture System Display 墌pg.29

Audio Level Indicator 墌pg.27

BProgramme Time Indicators 墌pg.32

CSymbolic Mode Indicators

D“Timer” Indicator 墌pg.31, 33

ES-VHS Indicator 墌pg. 27, 67

FChannel/Clock Display 墌pg.15

GTape Speed Indicators 墌pg.24

HAudio Mode Indicator 墌pg. 23

ITape Remaining Time Indicator 墌pg.2 5

J“Cassette Loaded” Mark

KVPS/PDC Indicator 墌pg. 31, 33

LVCR Indicator 墌pg. 25

MCounter/Remain Display

(The counter can display up to +/– “19:59:59”. If

the playback or recording time exceeds this limit,

the display starts to count from “0:00:00”.)

NMode Display (L-1, L-2, F-1, S-1 or SAT*)

* When “L-2 SELECT” is set to “SAT” (墌pg. 51), “SAT” appears

instead of “L-2”.

PLAY:

FF/REW VARIABLE

SEARCH:

STILL:

SLOW:

RECORD:

RECORD

PAUSE:

AUDIO DUBBING:

AUDIO DUBBING PAUSE:

INSERT:

INSERT PAUSE:

AV INSERT:

AV INSERT PAUSE:
