Page 83

AThe E (N) Button

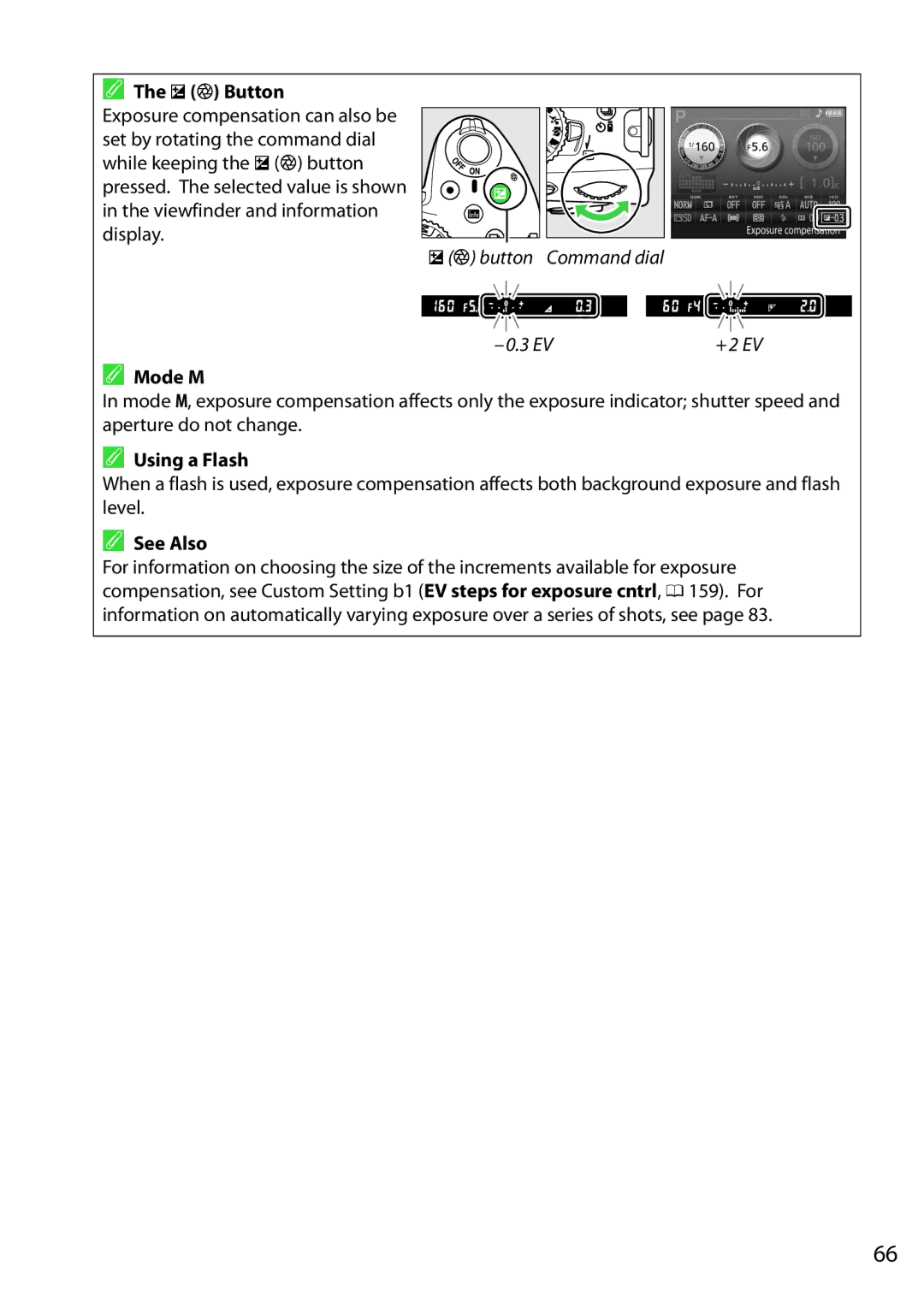

Exposure compensation can also be set by rotating the command dial while keeping the E (N) button pressed. The selected value is shown in the viewfinder and information display.

E(N) button Command dial

–0.3 EV

+2 EV

AMode M

In mode M, exposure compensation affects only the exposure indicator; shutter speed and aperture do not change.

AUsing a Flash

When a flash is used, exposure compensation affects both background exposure and flash level.

ASee Also

For information on choosing the size of the increments available for exposure compensation, see Custom Setting b1 (EV steps for exposure cntrl, 0 159). For information on automatically varying exposure over a series of shots, see page 83.

Page 83

Image 83

Nikon D5200 (18-105mm Kit), D5200 18105mm Kit, D5200 1855mm Kit Bronze, 1501, 1507, 1511 EN button Command dial, 0.3 EV, +2 EV
