CONNECTIONS

TV WITH AUDIO/VIDEO JACKS

This connection assumes:

You are connecting an antenna, cable, or cable box system

Your television has audio/video jacks

This connection provides:

Hi-Fi stereo sound playback from VCR

Record one channel while watching another (except when using a cable box for all channels)

To use this connection, you must have:

(1) coaxial cable for cable/antenna connection; (2) for cable box

(2) audio/video cables

To connect:

1.Connect cables as shown.

2.Return to First Things First, then follow the steps.

Using This Connection

Tune your TV to its Video Input Channel (see page 68 for more information). Use of TV•VCR button is not required.

To play a tape:

1.Insert a tape.

2.If necessary, press PLAY.

To record one program and watch another:

1.Begin recording a program using one of the recording features.

2.Select a different channel on the TV.

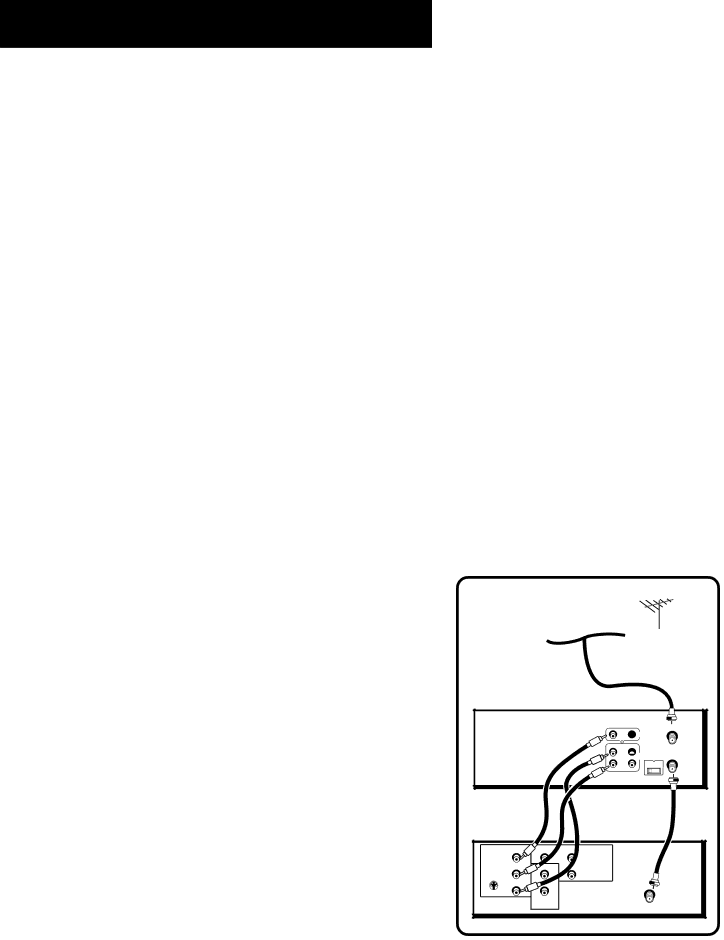

CABLE, CABLE BOX, OR ANTENNA

VCR

OUT IN

ANT. IN

VIDEO

L

AUDIO RF OUT

R

3 CH. 4



TV

VIDEO

VIDEO

R

INPUT 1



INPUT 2

R

R

L/MONO

L/MONO

L



S-VIDEO

AUDIO

CABLE/



ANTENNA



OUTPUT
