GR SERIES GAS FRYERS

Air Supply and Ventilation

WARNING: DO NOT OBSTRUCT THE FLOW OF COMBUSTION/ VENTILATION OR AIR OPENINGS AROUND THE FRYER. ADEQUATE CLEARANCE AROUND THE FRYER IS NECESSARY FOR SERVICING AND PROPER BURNER OPERATION.

Install fryer in an area with sufficient air supply for gas combustion at fryer burners.

Do not obstruct the flow of combustion and ventilation air.

Provide adequate clearance for air openings into the combustion chamber.

Do not permit fans to blow directly onto fryer.

Avoid wall-type fans, which create cross- currents within a room. Avoid open windows next to the sides or back.

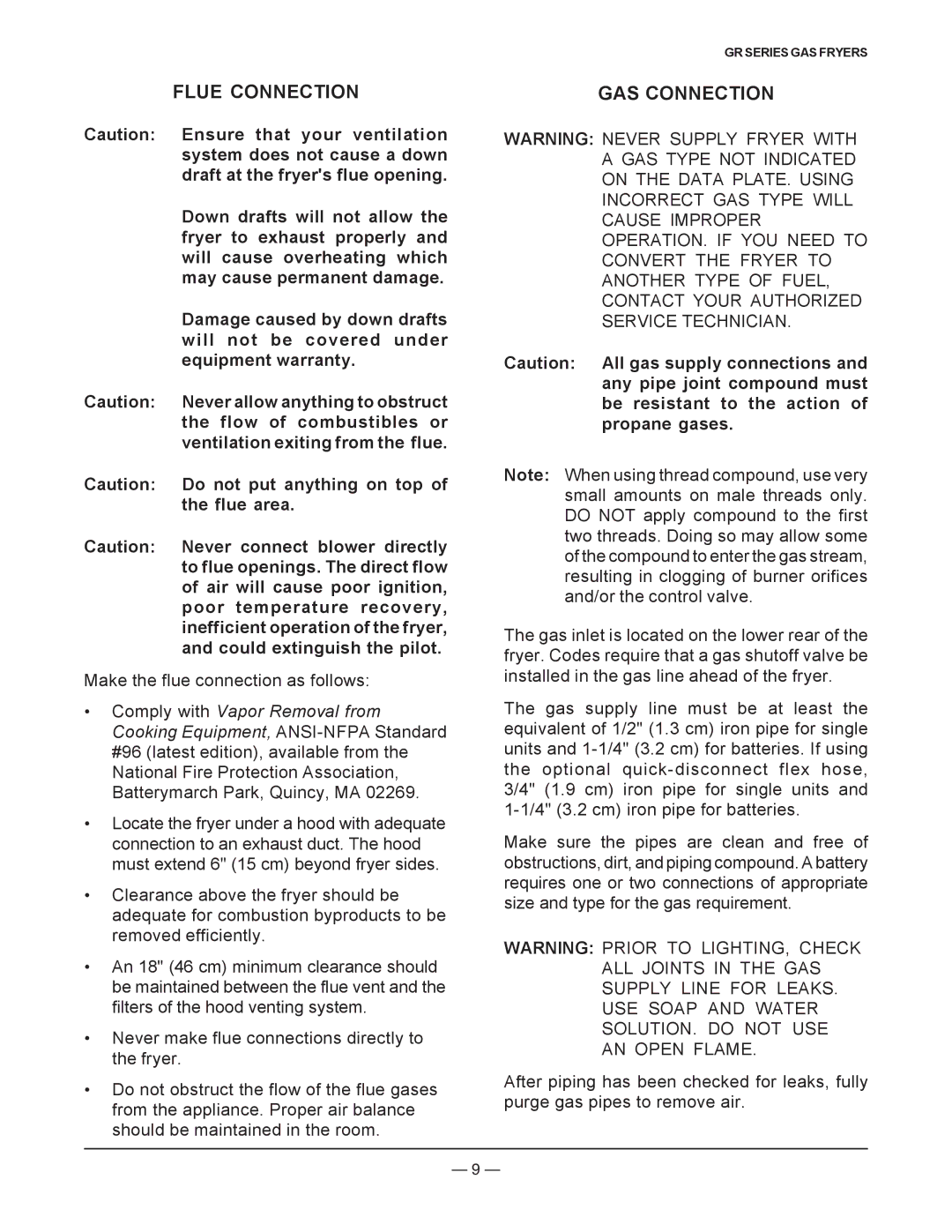

Also see FLUE CONNECTIONS in this manual for additional ventilation requirements.

WARNING: THE EQUIPMENT AREA MUST BE KEPT FREE AND CLEAR OF COMBUSTIBLE SUBSTANCES.

CODES AND STANDARDS

Install the fryer in accordance with:

In the United States:

State and local codes, or in the absence of local codes, with:

National Fuel Gas Code, ANSI-Z223.1/ NFPA #54 (latest edition). This shall include but not be limited to: NFPA #54 Section 10.3.5.2 for Venting.

Copies may be obtained from The American Gas Association Accredited Standards Committee Z223, @ 400 N. Capital St. NW, Washington, DC 20001 or the Secretary Standards Council, NFPA, 1 Batterymarch Park Quincy, MA 02169-7471

National Electrical Code ANSI/NFPA70 (latest edition) (if applicable).

In Canada:

Local codes.

CSA Standard C22.2 No. 3 Electrical Features of Fuel Burning Equipment.

CAN/CGA-B149.1 National Fuel Gas Code (latest edition), available from:

The Canadian Gas Association

178 Rexdale Blvd., Etobicoke, Ontario Canada M9W 1R3.

In Australia:

Fryers must be installed in accordance with the Gas Installation Code AG601 (latest edition).

Building Codes and any other relevant statutory authority having jurisdiction. Refer to data plate (attached to the inside door panel) for gas consumption, injector size and any other pertinent information about the device.

SECURING THE FRYER

WARNING: THE FRYER MUST BE PROPERLY RESTRAINED TO PREVENT MOVEMENT OR TIPPING. THIS RESTRAINT MUST PREVENT THE FRYER FROM MOVEMENTS THAT WOULD SPLASH HOT LIQUIDS ON PERSONNEL, WHICH COULD CAUSE SEVERE BURNS OR INJURIES.

The fryer must be restrained to prevent tipping and the splashing of hot liquid. The means of restraint may be the manner of installation, such as connection to a battery of appliances, or installing the fryer in an alcove, or by separate means such as adequate ties.

Instructions for installing casters to the fryer are included with the casters.

If casters are to be installed, refer to Gas Connection for Units on Casters under GAS CONNECTIONS in this manual.

Note: Leveling of the fryer is done after gas connections have been made. See LEVELING THE FRYER in this manual.
