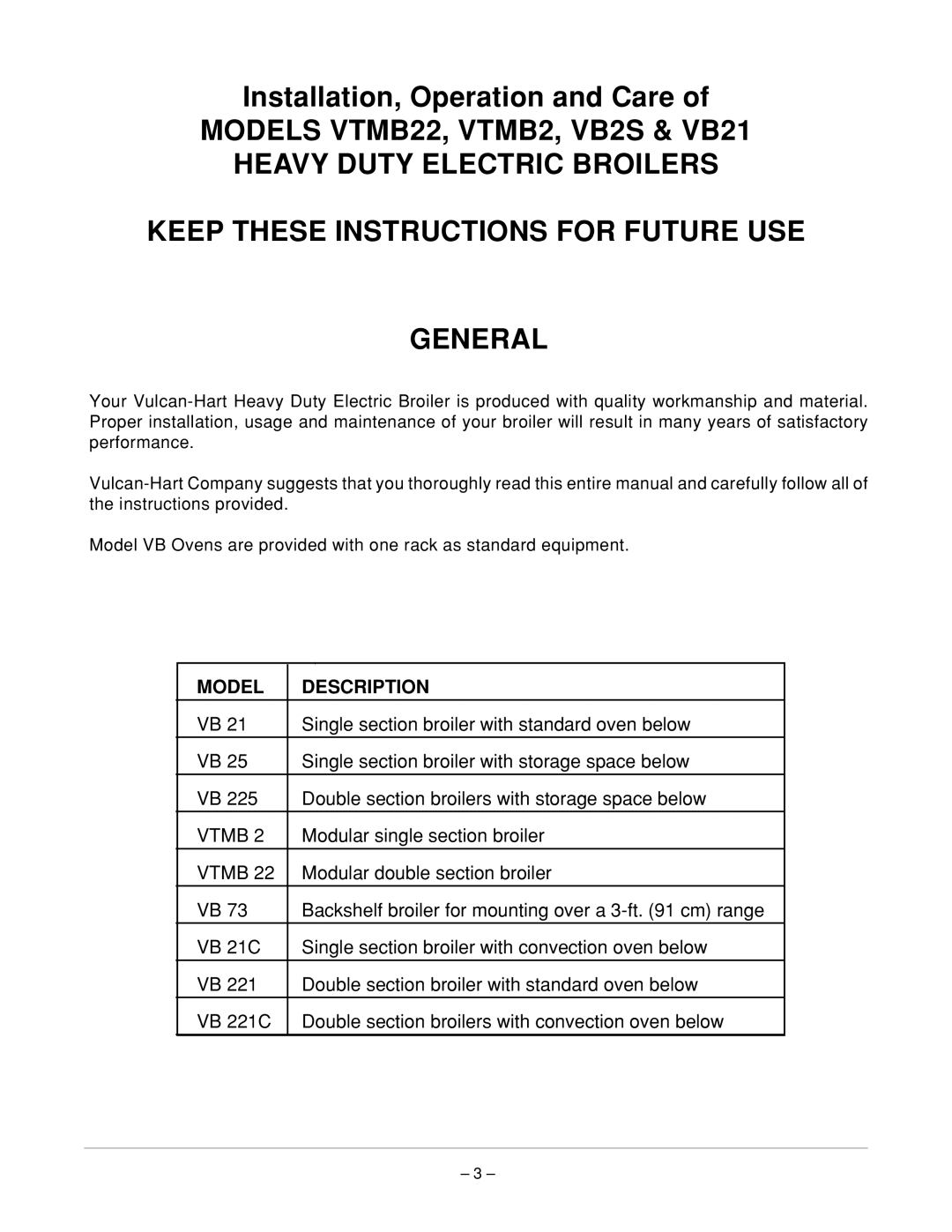

INSTALLATION
UNPACKING
Immediately after unpacking, check for possible shipping damage. If the broiler is found to be damaged, save the packaging material and contact the carrier within 15 days of delivery.
Remove all shipping wire, wood blocking, and accessories.
Before installing, verify that the electrical service agrees with the specifications on the rating plate located as follows: VTMB units - on the control panel front; VB21 - behind the oven door on the breaker box cover; and VB2S - behind the door panel of the storage cabinet base. If the supply and equipment requirements do not agree, contact your dealer or
INSTALLATION CODES AND STANDARDS
Your Vulcan broiler must be installed in accordance with:
1.State and local codes, or in the absence of local codes, with:
2.National Electrical Code
LOCATION
Position the broiler in its installation position. The area around the broiler should be kept free and clear of all combustible materials.
ELECTRICAL CONNECTIONS
WARNING: ELECTRICAL AND GROUNDING CONNECTIONS MUST COMPLY WITH THE APPLICABLE PORTIONS OF THE NATIONAL ELECTRICAL CODE AND/OR OTHER LOCAL ELECTRICAL CODES.
WARNING: DISCONNECT THE ELECTRICAL POWER SUPPLY AND PLACE A TAG AT THE DISCONNECT SWITCH TO INDICATE THAT YOU ARE WORKING ON THE CIRCUIT.
Bring conduit containing the proper supply wire (size and type in accordance with latest edition of the National Electrical Code
Connect the supply leads to the terminal block and the green grounding lead to the labeled ground lug.
Broilers designed for 220/380 or 240/415 volts require voltage supplies with grounded neutral (3 phase, 4 wire; or

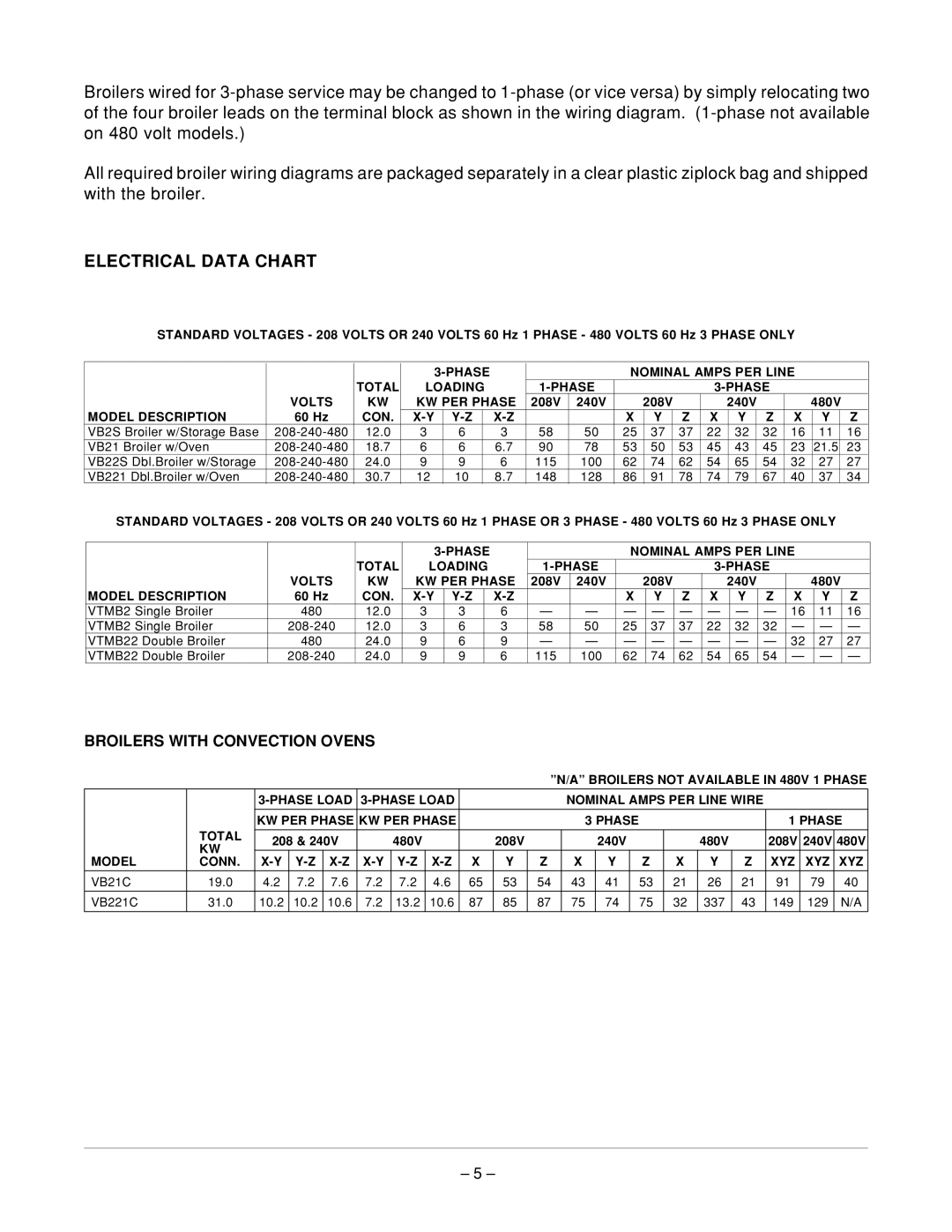

– 4 –
