Extron electronic IPL T CR48 manual Web server File Management screen

Page 39

To add or update files:

1.Select the File Management tab and the File Management screen (figure 4-9) is displayed.

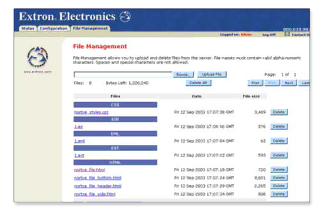

Figure 4-9 — Web server File Management screen

2.Click the Browse button to locate the file you want to upload.

3.Click the Upload File button to upload the file.

The file is added to the list of files under the Files column. After ten files have been loaded, additional file management pages appear in the page navigation area (on the right side of the screen).

To delete unwanted files:

1.Select the File Management tab and the File Management screen (figure 4-9) is displayed.

2.Find the file you wish to delete under the Files list.

3.Click the Delete button of the file to be deleted. If you wish to delete additional files, wait for the screen to refresh before clicking the Delete button of the next file.

If you wish to delete all files, click the Delete All button. The file count will revert to 0 and all subsequent pages will be deleted.
