Settings Menu

To enter the Settings Menu, press <T> from the Command Mode Menu.





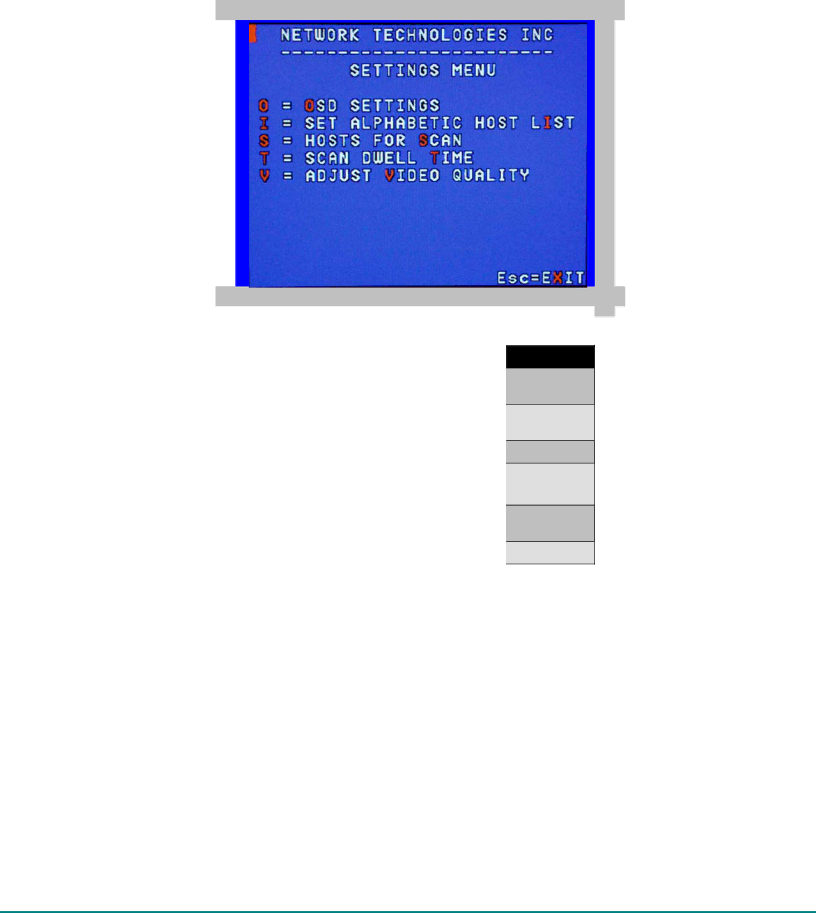

Figure 14- Settings menu

Settings Menu





Function



Description





OSD Settings

Enables the user to reposition or resize the OSD



menu on the monitor





Numeric Host List or

Toggle between listing Host Adapters by

Alphabetic Host List

reference number vs alphabetically by name





Hosts for Scan

Choose CPUs to be scanned





Change Scan Dwell Time

Set length of time a user can dwell (no keyboard



or mouse action) before PRIMUX will



automatically scan to the next accessible CPU

Adjust Video Quality

Adjust the video quality to improve the screen








Esc

Exit the Settings menu







Keystroke

O

I

S

T

V

X or Esc

FYI: CPUs will only be scanned if the user has been allowed access to the CPU (See "Allow/Deny Access To Hosts" on page 26) by the administrator.

FYI: Functions S,T, and V are not available when the "ROOT" user is logged in. The "ROOT" user cannot connect to a Host Adapter. The "ROOT" user is able to perform administrative tasks only.
