SUPER MICRO Computer X7DCL-3, X7DCL-i NIC1/NIC2 LED Indicators, HDD LED NIC1 LED NIC2 LED

Page 31

Chapter 2: Installation

HDD LED

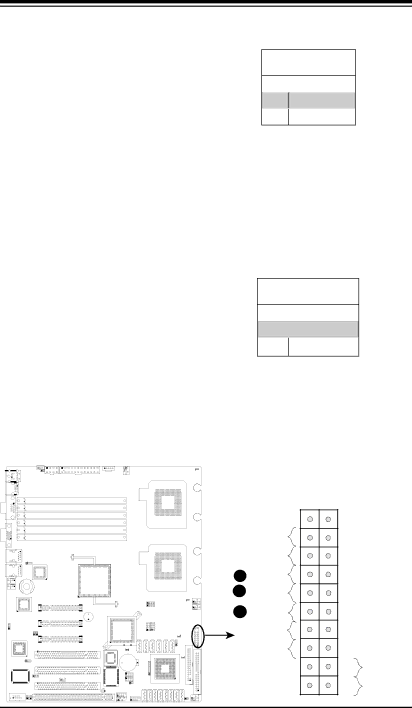

The HDD LED connection is located on pins 13 and 14 of JF1. Attach a hard drive LED cable here to display disk activity (for any hard drives on the system, including SAS, Serial ATA and IDE). See the table on the right for pin definitions.

NIC1/NIC2 LED Indicators

The NIC (Network Interface Control- ler) LED connection for GLAN port1 is located on pins 11 and 12 of JF1 and the LED connection for GLAN Port2 is on Pins 9 and 10. Attach the NIC LED cables to display network activity. Refer to the table on the right for pin definitions.

HDD LED

Pin Definitions (JF1)

Pin# Definition

13+5V

14HD Active

GLAN1/2 LED

Pin Definitions (JF1)

Pin# Definition

9/11	Vcc

10/12 Ground

A. HDD LED

B. NIC1 LED

C. NIC2 LED

X7DCL-3/i

Ground

Power LED

AHDD LED

BNIC1 LED

CNIC2 LED OH/Fan Fail LED

PWR Fail LED

Ground

20	19
	NMI
	X
	Vcc
	Vcc
	Vcc
	Vcc
	Vcc
	Vcc
	Reset
	PWR
2	1

Reset Button

Power Button

2-11
