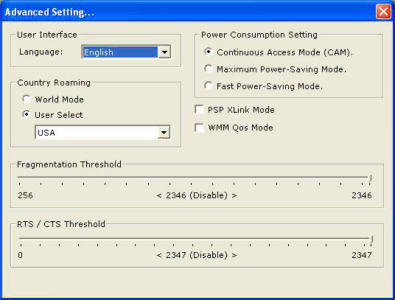

5.4 Advanced Settings

The “Advanced Setting” allows user to enable/disable country roaming and power consumption mode, setup the fragmentation threshold and RTS/CTS threshold of the adapter.

Parameter

Description





User Interface

Select the display language of the utility. Two languages are



enabled: English and Chinese.

Country Roaming

IEEE 802.11d (Country Roaming) is a standard that enable the



wireless devices work at the proper transmission power and radio



channel regulated by the country where the user is located.



World Mode – Enable the country roaming function, the adapter



will follow the setting of the connecting AP automatically.



User Select – Disable the country roaming function, users can



select the country where they are located. The channel setting



differs from country user selected.









Parameter

Description





Power Consumption Setting

Continuous Access Mode (CAM) – The adapter will always set



in active mode.



Maximum Power-Saving Mode – Enable the adapter in the



power saving mode when it is idle.



Fast Power-Saving Mode – Enable the adapter in the power



27
