Wacom DTI-520 manual Attaching the Pen Tether, Procedure

Page 27

Supplementary Information

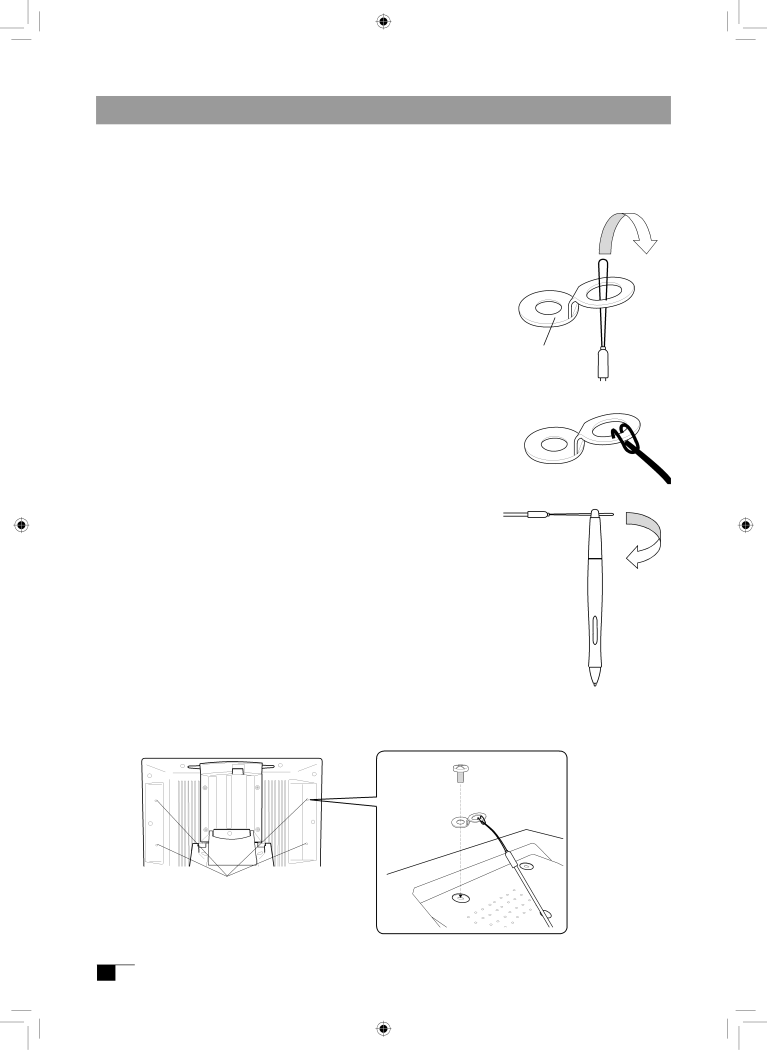

Attaching the Pen Tether

The pen tether may be attached to ensure that the pen is not lost or mislaid.

Procedure:

1Pass the tip of the pen tether through the fitting.

Installation

Fitting

2.Pass the tip through the loop of the opposite end of the pen tether.

3.Pass the opposite tip of the pen tether through the hole at the top of the pen, and then pass the fitting through the loop.

4.Secure the fitting with the screws provided. The fittings may be installed in any one of the four holes shown below.

Screw Holes

26  

UM-0314(A)_EN.indd 26

2007/11/12 16:53:21
