Linksys EG0801SK manual Installing the Network Adapter’s Driver

Page 12

Instant Gigabit Series

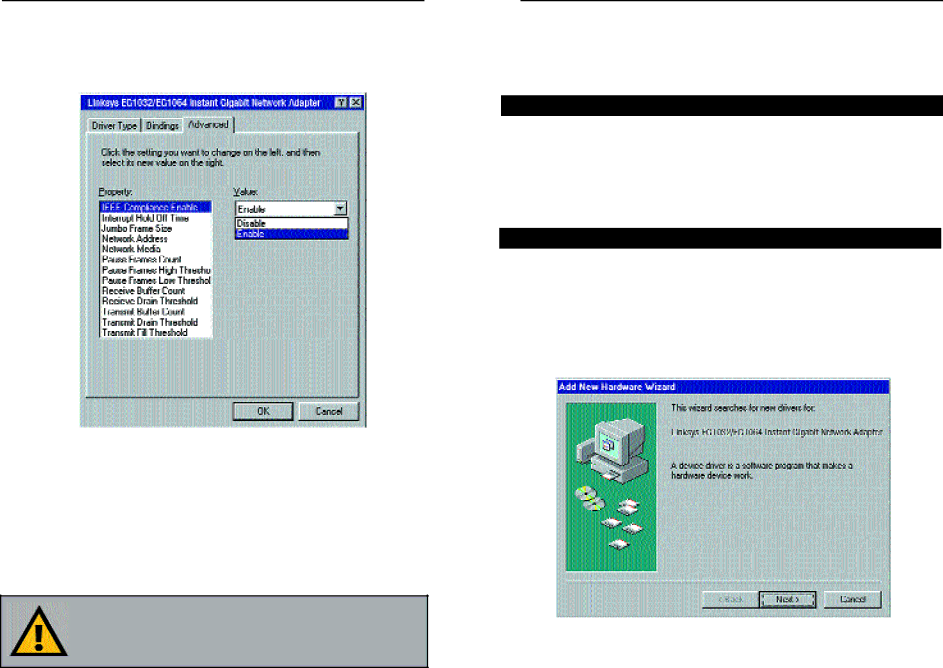

5.Once the driver is installed, the following screen will appear. The default settings should allow the Adapter to function properly. Click the OK but- ton to continue. For more information about these settings, refer to the Advanced Settings section of this manual.

6.When asked if you want to restart your PC, remove all disks from your computer’s drives and click the Yes button. If Windows does not ask you to restart your PC, click the Start button, choose Shut Down, choose Restart, then click Yes.

The Windows 95 Version B driver installation is complete. Refer to the sec- tion on Configuring the Instant Gigabit Network Adapter for Windows 95, 98, and Millennium for more information about the setup of the Adapter.

Note: From this point on, you must provide Windows with a User name and Password every time you are prompted to do so. Remember to click OK to properly log into Windows. If you click Cancel or hit the Escape (ESC) key, you will not log into the network.

EtherFast® 10/100/1000 8+1 Workgroup GigaSwitch Starter Kit

Installing the Drivers for Windows 98

Overview

After physically installing the Instant Gigabit Network Adapter in your com- puter, follow these instructions to install the network driver. The installation procedure for the network driver will vary slightly depending on which version of Windows 98 you are using, and on your current system configuration. If at any time during the installation you encounter problems, consult the Troubleshooting section.

Installing the Network Adapter’s Driver

1.If you haven’t already, start up your computer.

2.Windows 98 will automatically detect the presence of the PCI Ethernet Controller hardware in your computer.

3.Insert the Instant Gigabit Network Adapter Driver Disk into your floppy drive while the Add New Hardware Wizard window is visible. Click Next.

17

18

Page 11 Page 13
