6.4 Menu Operation Detail

*The following Menu settings must be saved before the changes take effect.*

6.4.1 Record search

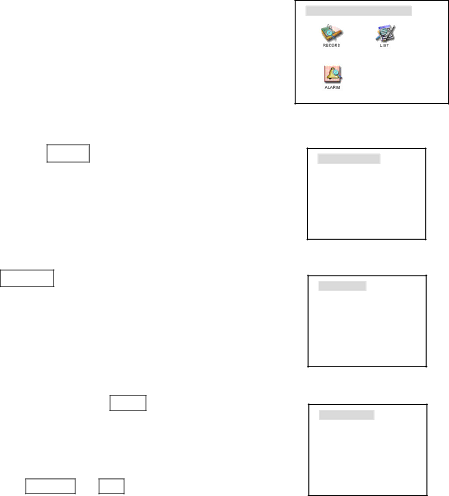

The menu for record search is pictured at the right.

First set the channel#, then date and time you want to

search, then select START, the playback begins.

CH 1

List

Alarm

First set the channel #, date and time you want to search, then select SEARCH, the screen shows the 8 recording files following the searching time. Use ￿￿ to select the file to be played. Press ENTER to begin the playback.

Note the letters before the record are equal to following R—Record M—Motion Detection A—Alarm

First set the search date, then select START, all the alarm records will

be displayed. Press ￿￿ to select the record. Press ENTER to play the alarm record. Note: motion detection alarm can not be searched in this category, but can be

searched in RECORD and LIST.
