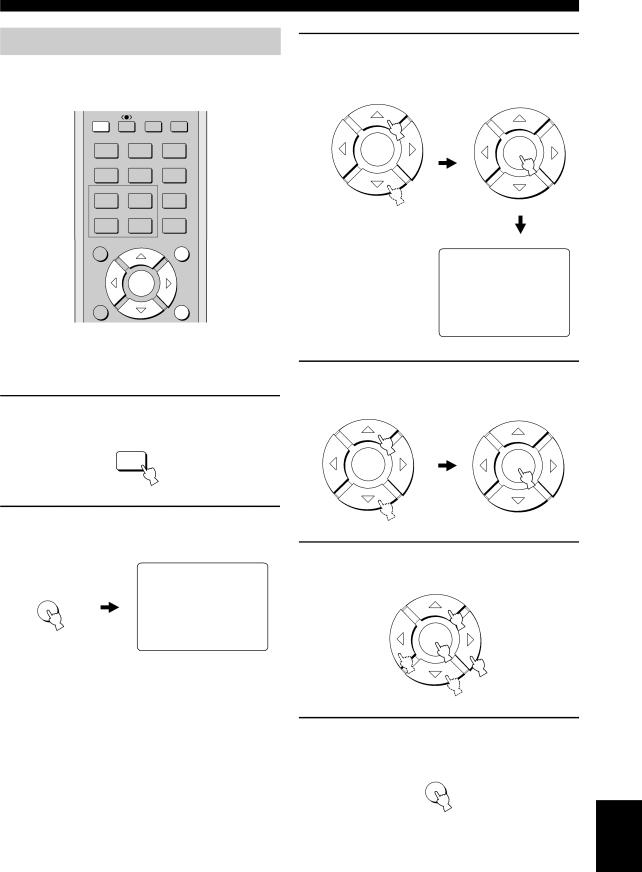

Using MANUAL SETUP

Use the remote control to access and adjust each parameter.

INPUTMODE SLEEP

YSP

MANUAL SETUP

3Press / to select MANUAL SETUP and then press ENTER.

The following screen appears on your TV.

5BEAM ST+3BEAM

1 2

STEREO TARGET

4 5

MUSIC MOVIE

7 8

SPORTS OFF

0+10

3BEAM

3

6

VOL MODE

9

SURROUND

ENTER

ENTER

CH LEVEL

CINEMA DSP

MENU

	ENTER
TEST	RETURN

;MANUAL SETUP

.

2 BEAM MENU

3 INPUT MENU

4 DISPLAY MENU

p

p

y

You can adjust the SET MENU parameters while the unit is reproducing sound.

1Press YSP on the remote control to switch to the operation mode of this unit.

YSP

2Press MENU on the remote control.

The SET MENU screen appears on your TV.

SET MENU

MENU	. ;MEMORY
	;AUTO SETUP
	;BASIC SETUP
	;MANUAL SETUP
	p	p

y

•The control buttons used for SET MENU are displayed on the bottom of the screen.

•To return to the previous screen while using SET MENU, press RETURN on the remote control.

•To resume cursor button operations after changing the control area by pressing an input selector button, press TEST on the remote control.

•To cancel the SET MENU screen, press MENU once more.

•You can also perform the following operations in the front panel display.

•If you press an input selector button during the SET MENU operations, the cursor buttons become ineffective. In this case, press TEST once.

4Press / to select a sub menu and then press ENTER.

ENTER

ENTER

5Press / / / and ENTER to configure each parameter.

ENTER

6Press MENU to exit.

The OSD disappears from your TV screen.

MENU
