Page 29

Network Camera User’s Manual

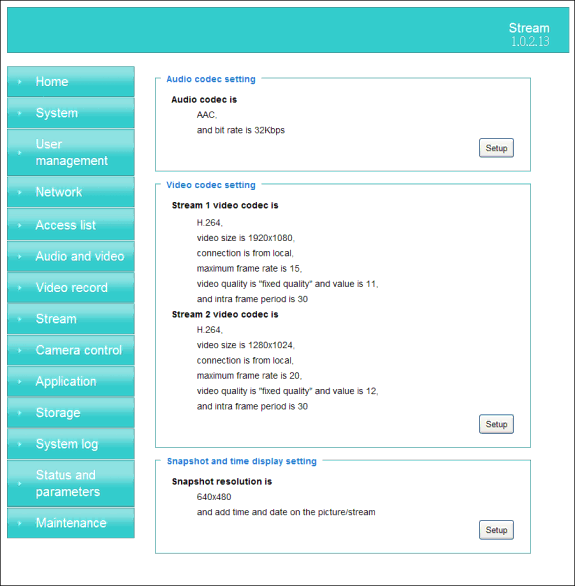

Stream

Audio codec setting

(1)“Audio codec type” There are two choices of audio codec types available: ”AMR”、 “AAC” and ”G.711”.

(2)“Bit rate”

--“AMR” The bit rates are selectable at the following rates: 4750,5150,5900,6700,7400,7950,10200 and 12200.

-- “AAC” The bit rates are selectable at the following rates: 8Kbps,16Kbps, 24Kbps and 32Kbps.

-- “G.711” pcmu and pcma.

Video codec setting

(1) “Select Stream” The Network Camera supports “Stream 1”and “Stream 2”.

29/59
