Axis Communications AXIS Q6000-E Hardware Overview, Connectors and Buttons, Network Connector

Page 6

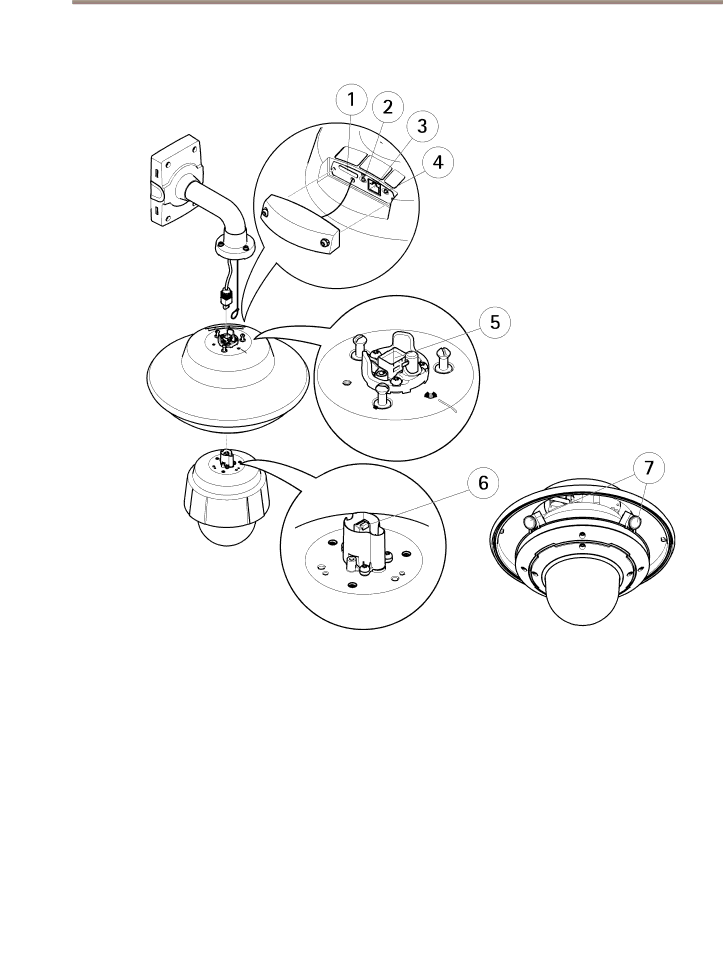

AXIS Q6000-E PTZ Network Camera

Hardware Overview

1SD card slot

2Restart button

3Network connector (service port)

4Control button

5Network connector on AXIS Q6000-E

6Network connector on PTZ camera.

7Camera heads

Connectors and Buttons

For technical specifications, see page 59.

Network Connector

RJ45 Push-pull Connector (IP66) with High Power over Ethernet (High PoE).

Image 6
