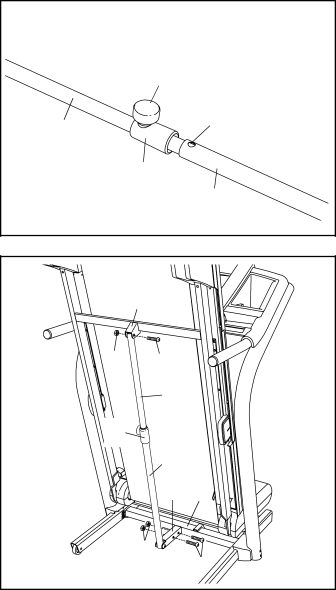

10.Identify the Storage Latch (53). Remove the tie from the end of the tube. Make sure that the sleeve has been slid over the indicated hole and that the Latch Knob (54) is locked into the indi- cated hole. Pull on the sleeve to make sure that it is locked into place.
11.Raise the Frame (56) to the position shown.
Have a second person hold the Frame until this step is completed.
Orient the Storage Latch (53) so that the large barrel and the Latch Knob (54) are in the posi- tions shown.
Attach the Latch Bracket (14) and Storage Latch
(53)to the Base (83) with two 3/8" x 2" Bolts (4) and two 3/8" Nuts (8).
Attach the upper end of the Storage Latch (53) to the bracket on the Frame (56) with a 3/8" x 2" Bolt (4) and a 3/8" Nut (8). Note: It may be nec- essary to move the Frame back and forth to align the Storage Latch with the bracket.
Lower the Frame (56) (see HOW TO LOWER THE TREADMILL FOR USE on page 25).
10 |
|
|
| 54 |
|
Tube |
| Hole |
|
| |
| Sleeve |
|
|
| 53 |
11 |
|
|
| 56 |
|
8 | 4 |
|
| 53 |
|
54 |
| |
| Large | |
| Barrel | |
| 14 | 83 |
| 8 |
|
|
| 4 |
