3.5 Analog Output Connections

The analog output is a linearized millivolt signal that is equivalent to the displayed temperature. It comes as a standard feature with every unit. The resolution of the analog output is no greater than the resolution of the display.

Note ☞ The analog output is a non-isolated signal.

To access the analog signal, attach copper wire to the 3-pin female connector that is supplied with the meter. Refer to Figure 3-9for wiring instructions. Plug the female connector into the P2 (male) connector at the rear of the meter.

Figure 2-2shows the location of the P2 connector on the meter. Note that this connector shares a common return with the ÒDisplay Hold" function.

mV

Output +

RETURN –

1

2

3

Screws

underneath

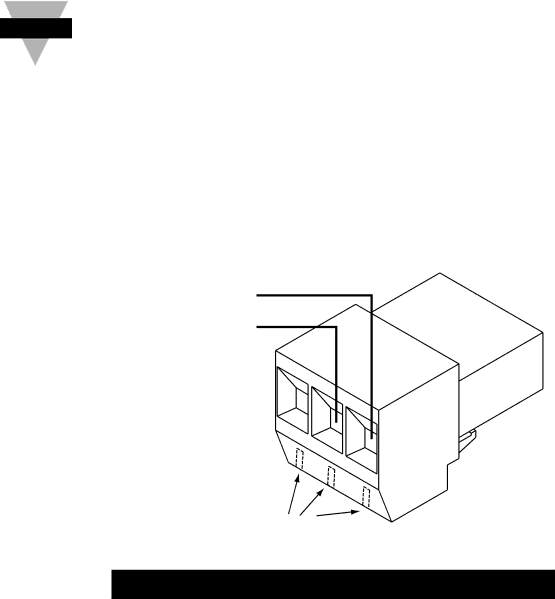

Figure 3-9. Analog Output Connections (P2)
